Clutch Pedal Goes to Floor UK – Causes, Diagnosis & Costs

Free Diagnostic Tool

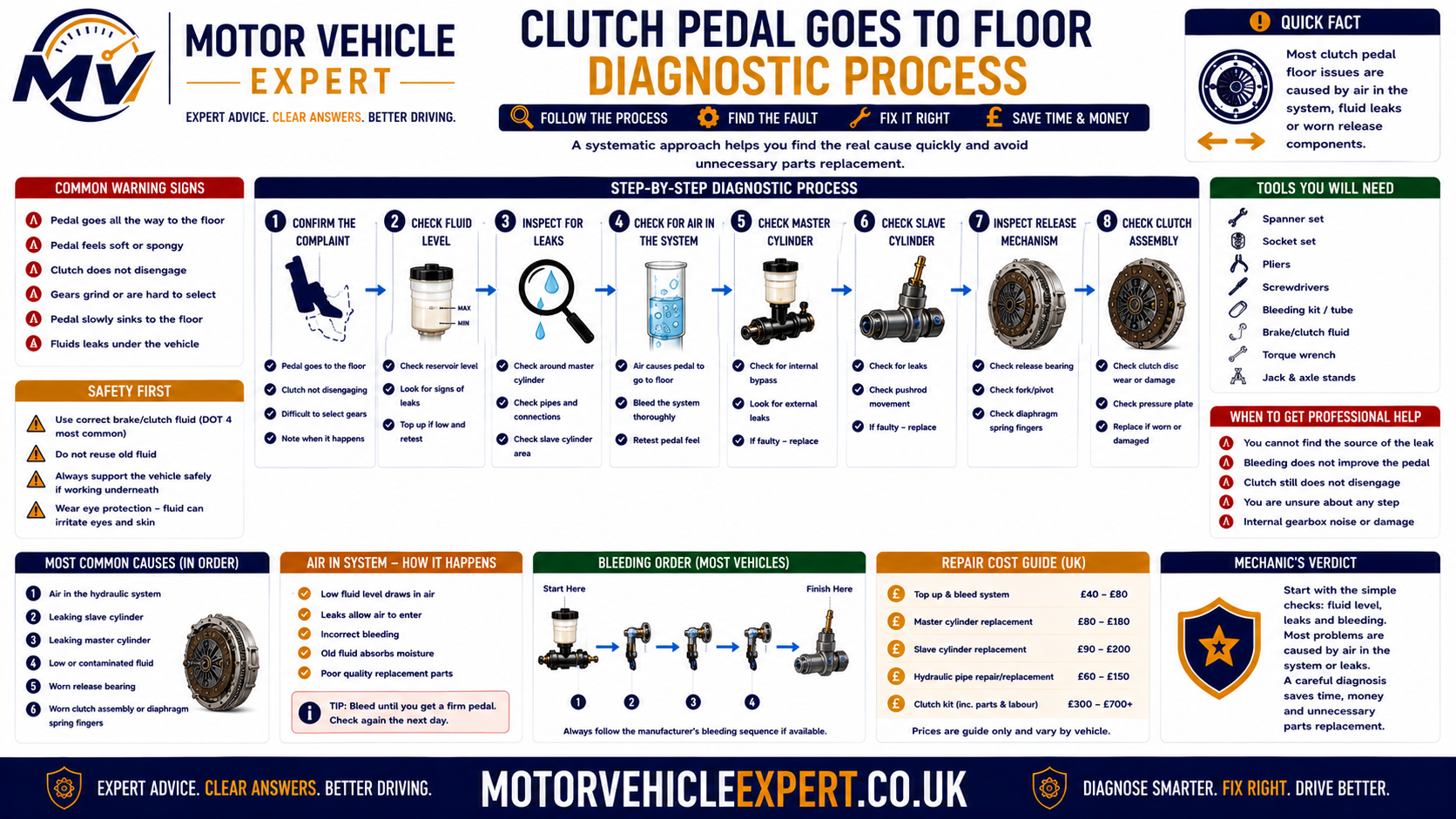

Use the Diagnostic App for Sudden Clutch Pressure Loss

A clutch pedal can fall to the floor because hydraulic pressure has been lost, a cylinder is bypassing internally, a hose or pipe has failed or a mechanical cable or pedal connection has broken. The Motor Vehicle Expert diagnostic app can help organise the symptoms before parts are replaced.

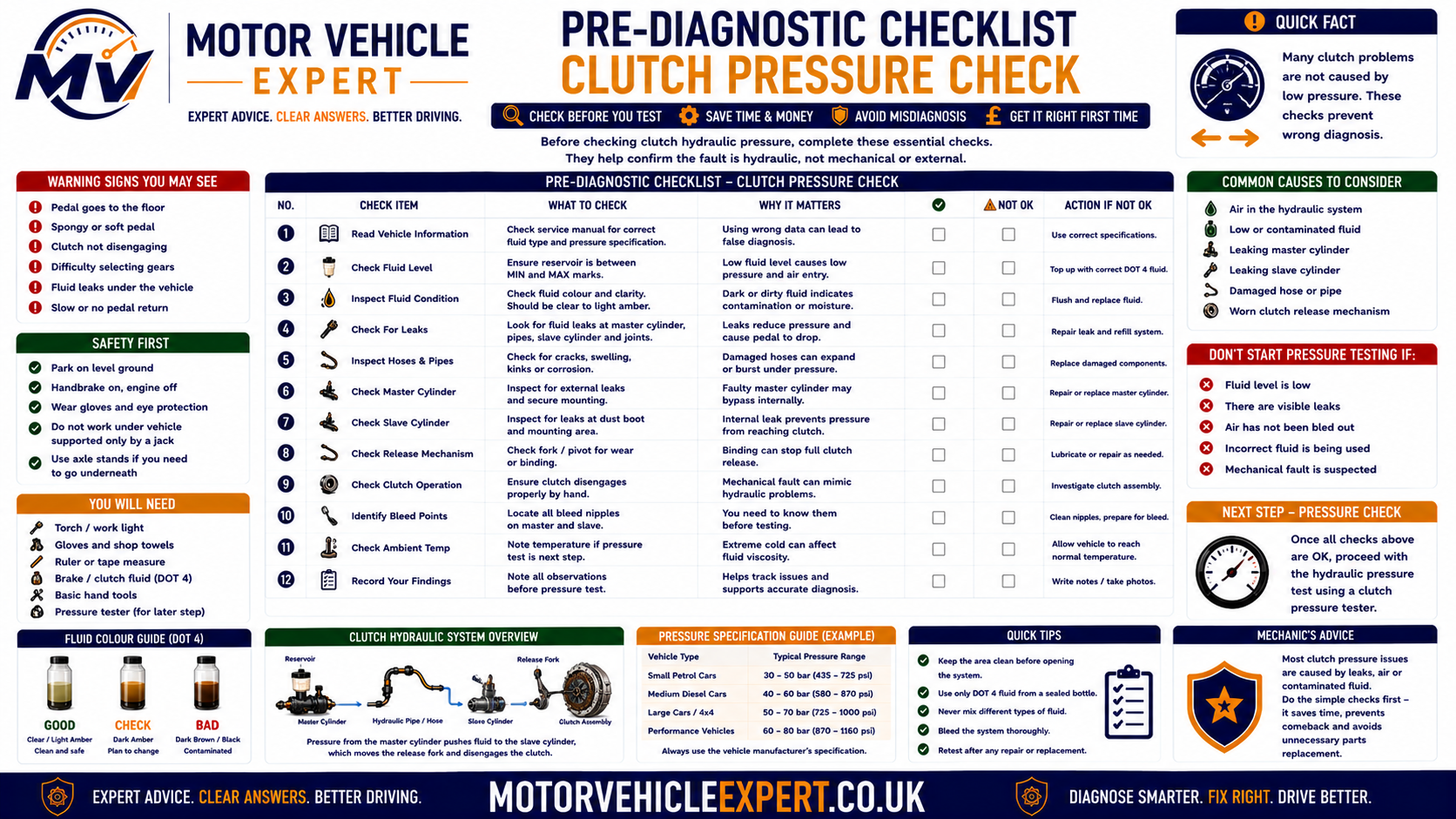

1. Record the Failure

Note whether the pedal dropped suddenly, became soft gradually or lost pressure after repeated use.

2. Identify the System

Establish whether the vehicle uses hydraulic clutch operation or a mechanical cable.

3. Check Supporting Evidence

Record fluid loss, visible leakage, pumping response, pedal resistance and gear-selection problems.

4. Judge the Safety Risk

Decide whether the vehicle can be moved safely or requires immediate recovery.

Open Diagnostic App Stuck Pedal Guide Clutch-Slip Guide

Sudden loss of pressure is different from ordinary clutch wear

A worn clutch usually produces rev flare and reduced torque transfer. A pedal that suddenly goes to the floor points first towards the hydraulic circuit, cable or pedal linkage.

Quick Answer

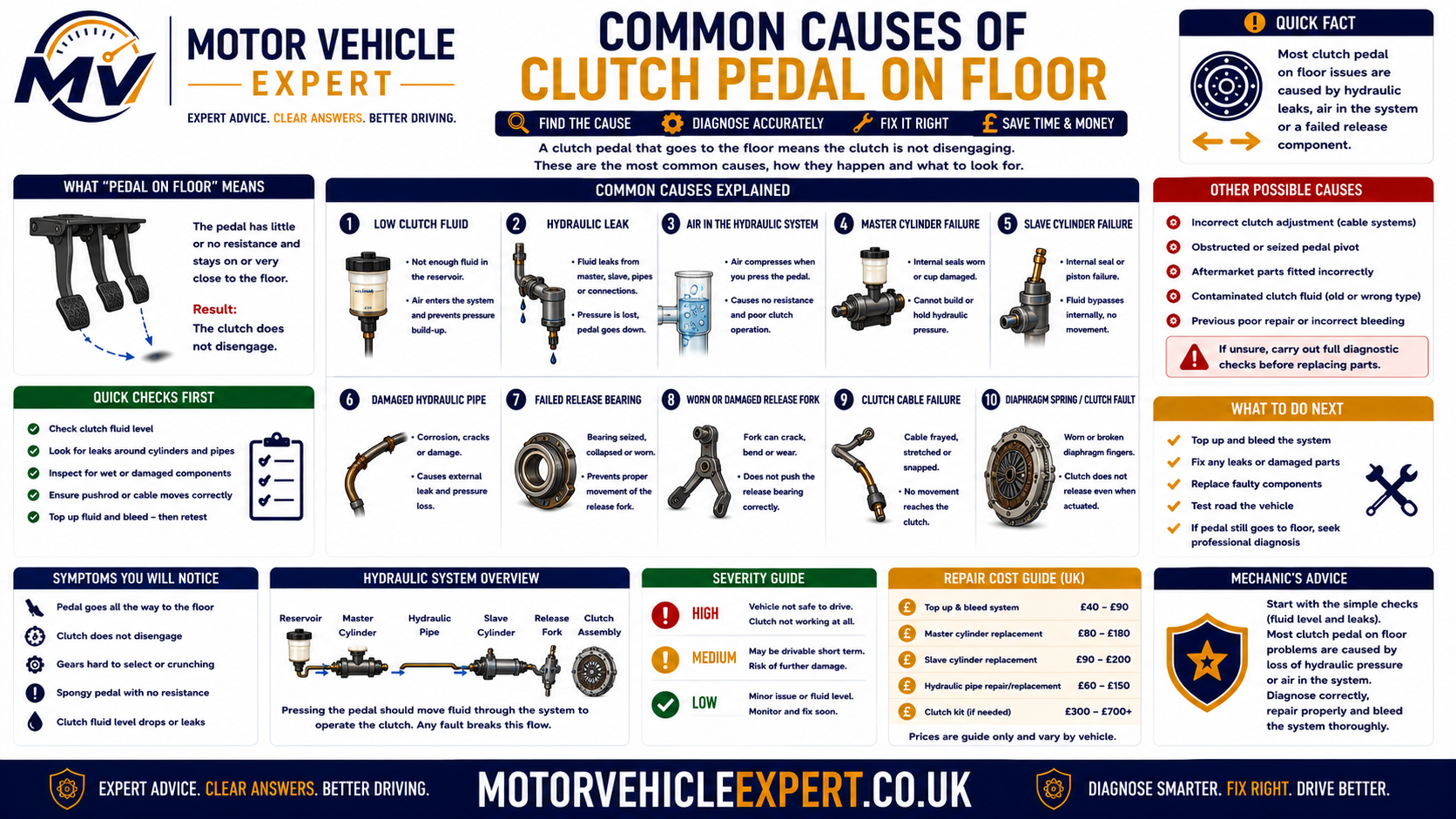

Why Did My Clutch Pedal Go to the Floor?

A clutch pedal that suddenly falls to the floor has normally lost the resistance created by hydraulic pressure or the mechanical connection between the pedal and clutch-release system.

On a hydraulic clutch, common causes include low fluid, a leaking or internally bypassing master cylinder, a failed slave cylinder, a damaged hose or pipe and air in the system. On a cable-operated clutch, a snapped cable, detached end fitting or failed pedal quadrant can create the same sudden drop.

Pedal Drops Suddenly

A hydraulic line, cylinder, clutch cable or pedal connection may have failed without warning.

Pedal Feels Soft or Spongy

Air, fluid loss or internal hydraulic-cylinder bypass is likely.

Pumping Restores Pressure

The hydraulic system may contain air, be leaking or have a cylinder that cannot hold pressure.

No Gears With Engine Running

The clutch is not disengaging fully and the vehicle should not be driven.

Hydraulic Failure More Likely

Typical Evidence

✓ The vehicle has a clutch-fluid reservoir.
✓ Fluid level is low or falling.
✓ The pedal feels soft or spongy.
✓ Pumping restores pressure briefly.
✓ Fluid is visible near the pedal or gearbox.
✓ The pedal sinks under steady pressure.

Cable or Linkage Failure More Likely

Typical Evidence

! The pedal dropped after a snap or crack.
! Almost no resistance remains.
! The vehicle uses a clutch cable.
! A cable end appears loose or detached.
! The pedal quadrant or linkage is damaged.
! Pumping the pedal makes no difference.

Pedal behaviour	Likely fault direction	Immediate response
Pedal drops suddenly with no resistance	Major hydraulic loss, broken cable or detached linkage	Stop and inspect before driving
Pedal feels soft and improves after pumping	Air, fluid loss or cylinder bypass	Locate the hydraulic fault
Pedal sinks slowly under steady pressure	Master or slave-cylinder internal bypass	Pressure-test both cylinders
Fluid is visible in the footwell	Master-cylinder or feed-line leak	Repair the leak and bleed the system
Fluid emerges from the bellhousing	Concentric slave-cylinder failure	Recover and prepare for gearbox removal
Gears select with the engine off only	Clutch is not disengaging	Do not force gears or continue driving

Mechanic insight

Start by identifying whether pressure was lost hydraulically or whether the pedal became disconnected mechanically. This prevents unnecessary clutch replacement where an external cylinder, hose or cable is responsible.

Temporary pedal pressure does not mean the vehicle is safe

Pumping the pedal or topping up fluid can restore clutch operation briefly, but the underlying leak or cylinder fault can fail again during the next gear change. Recovery is safer where pressure is unstable.

Clutch-Pedal Severity

Is Sudden Clutch-Pedal Pressure Loss Serious?

Yes. A clutch pedal that suddenly goes to the floor means the operating system may no longer be able to disengage the clutch consistently. The vehicle can become difficult to remove from gear, impossible to select into first or reverse, or unsafe to control in slow traffic.

The fault may come from an external hydraulic leak, internal cylinder bypass, a burst hose, a broken cable or a detached pedal connection. Even where pumping the pedal briefly restores pressure, the system can fail again during the next gear change.

Pedal Feels Slightly Soft

Early Warning

Diagnose Promptly

Air, early fluid loss or internal cylinder wear may be reducing hydraulic pressure.

Pressure Returns After Pumping

Significant Fault

Hydraulic Failure Likely

The system cannot create or retain sufficient pressure from one normal pedal stroke.

Pedal Drops With No Resistance

High Risk

Stop and Inspect

A major hydraulic leak, broken cable or detached linkage may have removed the clutch connection completely.

No Gears With Engine Running

Urgent

Recover the Vehicle

The clutch is not disengaging sufficiently for safe gear selection.

Diagnose Without Delay

Early Failure Evidence

✓ Pedal resistance has become softer.
✓ The biting point has moved suddenly.
✓ First or reverse gear has become difficult.
✓ Pumping improves operation briefly.
✓ The fluid level has begun falling.
✓ Pedal pressure changes between journeys.

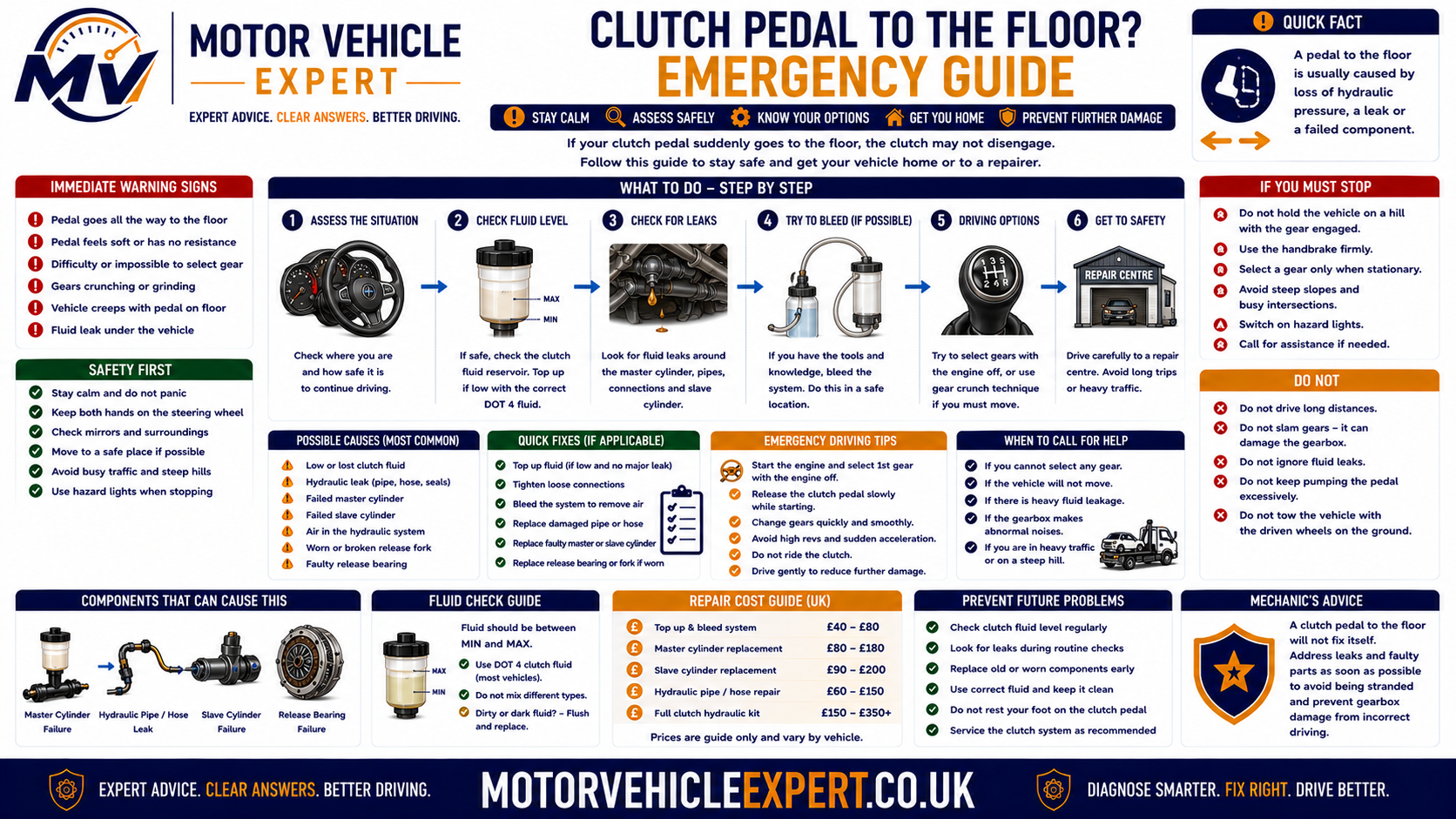

Stop and Arrange Recovery

Urgent Failure Evidence

! The pedal remains on the floor.
! Almost no pedal resistance remains.
! Hydraulic fluid is leaking rapidly.
! The vehicle is stuck in gear.
! The car creeps with the pedal fully pressed.
! The engine stalls when the vehicle stops.
! A cable, pedal fitting or linkage has broken.

One successful pedal pump does not make the system reliable

Hydraulic pressure may disappear again without warning. Do not depend on repeated pumping to travel through junctions, traffic or roundabouts.

Pressure-Loss Explained

What Happens When the Clutch Pedal Goes to the Floor?

Pressing the clutch pedal should create enough cable movement or hydraulic pressure to separate the clutch friction plate from the flywheel. When the pedal falls to the floor without normal resistance, that movement is no longer reaching the release mechanism correctly.

The clutch may remain engaged even though the pedal is fully pressed. This keeps the gearbox input shaft rotating and can make first or reverse gear difficult or impossible to select while the engine is running.

1. Pedal Is Pressed

The driver expects the pedal to create hydraulic pressure or pull the clutch cable.

2. Pressure or Connection Is Lost

Fluid escapes, a cylinder bypasses internally or a mechanical component disconnects.

3. Release Travel Is Reduced

The slave cylinder, cable or release fork does not move far enough.

4. Clutch Remains Engaged

Engine torque continues reaching the gearbox despite the pedal being pressed.

5. Input Shaft Keeps Rotating

The gearbox remains loaded and stationary gear selection becomes difficult.

6. Vehicle May Creep

Partial clutch release can allow the car to move while the pedal is on the floor.

7. Engine May Stall

The drivetrain remains connected as the vehicle comes to a stop.

8. Control Becomes Unpredictable

The driver cannot rely on the next pedal application or gear change.

Result of pressure loss	What the driver notices	Mechanical explanation
Insufficient release travel	First and reverse become difficult	The clutch remains partly engaged
No hydraulic pressure	Pedal drops with little resistance	Fluid pressure is not reaching the slave cylinder
Internal cylinder bypass	Pedal sinks or improves after pumping	Fluid passes internal seals instead of moving the clutch
Broken cable or linkage	Pedal drops suddenly after a snap	The mechanical connection has separated
Partial clutch disengagement	Vehicle creeps with the pedal pressed	Clutch friction surfaces remain partly clamped
Complete release failure	Vehicle remains stuck in gear	The engine and gearbox cannot be separated normally

Do not force the gear lever when clutch release is incomplete

Forcing first or reverse can damage synchromesh components, selector mechanisms and gear teeth. Switch off safely and arrange diagnosis or recovery.

Hydraulic Clutch Explained

How the Clutch Hydraulic System Creates Pedal Pressure

A hydraulic clutch transfers pedal force using brake or clutch fluid. The master cylinder creates pressure, the pipe and hose carry that pressure, and the slave cylinder converts it back into mechanical movement at the gearbox.

The system must remain full, sealed and free from air. Fluid does not compress significantly, so a healthy circuit transfers pedal movement quickly and consistently. Air, leakage or internal seal bypass reduces the travel reaching the clutch-release mechanism.

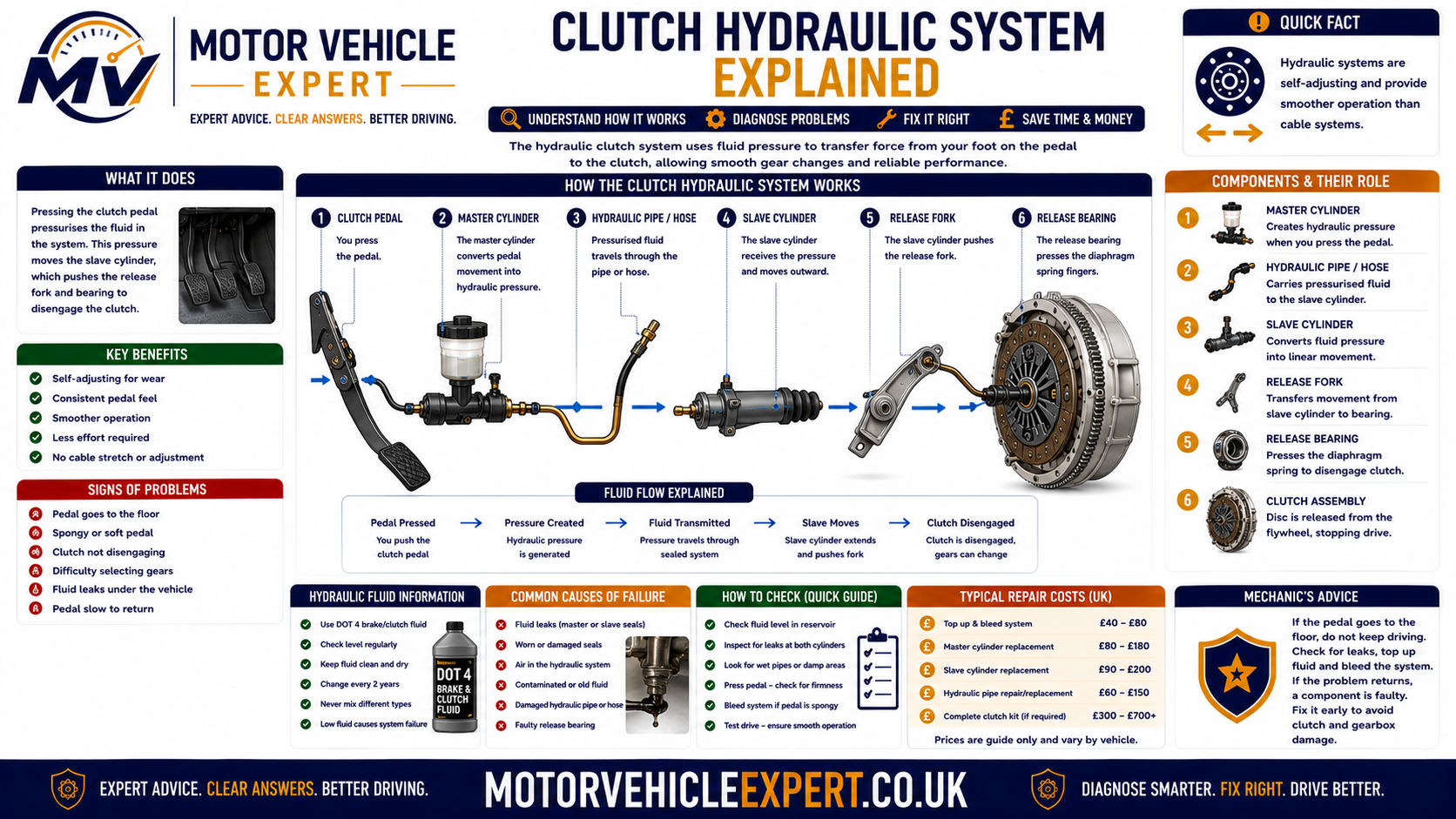

Clutch hydraulic system explained showing clutch pedal, master cylinder, fluid reservoir, hydraulic pipe, flexible hose, slave cylinder, release bearing, pressure plate and clutch friction plate — Figure 1: Hydraulic clutch operation from the pedal and master cylinder through the pipework and slave cylinder to the clutch release mechanism.

1. Pedal Moves the Pushrod

Pedal travel pushes the master-cylinder piston into its bore.

2. Master Cylinder Builds Pressure

Internal seals force hydraulic fluid into the clutch line.

3. Pressure Travels Through the Pipe

Rigid pipework carries fluid across the engine bay or bulkhead.

4. Flexible Hose Allows Movement

A flexible section accommodates engine and gearbox movement.

5. Slave Cylinder Extends

Hydraulic pressure moves an external piston or concentric release bearing.

6. Release Mechanism Moves

The slave cylinder operates the release fork or acts directly on the pressure plate.

7. Clutch Disengages

Pressure-plate clamping force is reduced so gears can be selected.

8. Fluid Returns After Release

Releasing the pedal allows pressure to fall and the system to return to its rest position.

Fluid Reservoir

Stores the specified hydraulic fluid and compensates for small volume changes.

Master Cylinder

Converts pedal movement into hydraulic pressure.

Reservoir Feed Hose

Supplies fluid from the reservoir to the master cylinder.

Rigid Hydraulic Pipe

Transfers pressure through a strong fixed line.

Flexible Clutch Hose

Allows drivetrain movement while retaining hydraulic pressure.

External Slave Cylinder

Moves a visible release arm on the gearbox.

Concentric Slave Cylinder

Sits inside the bellhousing around the gearbox input shaft.

Bleed Point

Allows trapped air to be removed using the correct procedure.

Clutch Release Mechanism

Converts slave-cylinder movement into clutch disengagement.

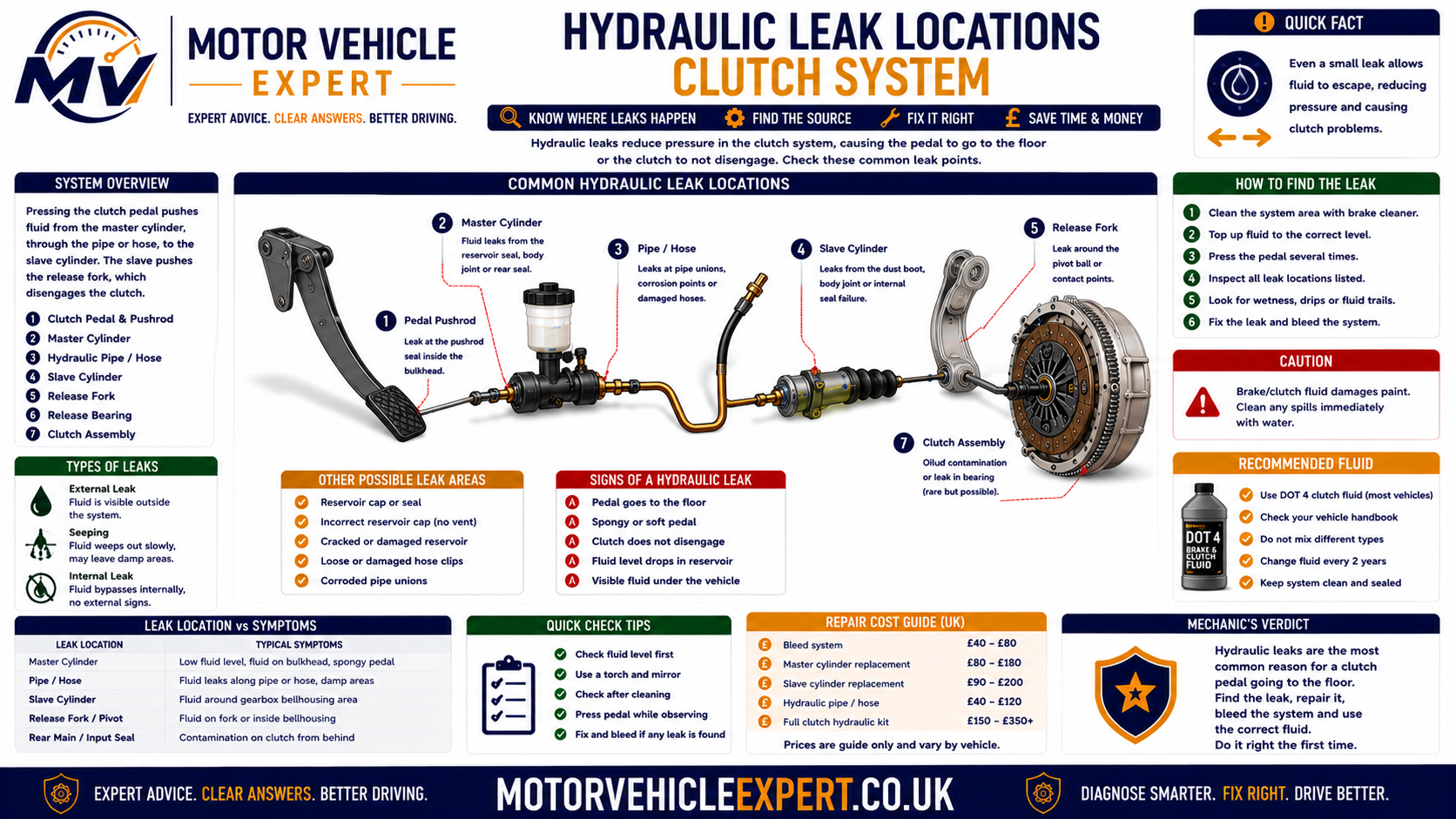

Hydraulic failure	Effect on pedal	Likely evidence
Master-cylinder external leak	Soft pedal and falling pressure	Fluid near the pedal or bulkhead
Master-cylinder internal bypass	Pedal sinks without an obvious leak	Pressure cannot be held under steady load
Pipe or hose leak	Pedal becomes soft or drops	Wet pipework, connections or drips
Hose expansion	Pedal feels soft with reduced release travel	Hose swells while pressure is applied
External slave-cylinder leak	Pressure falls and gears become difficult	Fluid around the gearbox-mounted cylinder
Concentric slave-cylinder leak	Pedal pressure disappears	Fluid emerging from the bellhousing
Air in the system	Soft or springy pedal	Pumping may restore pressure temporarily

Hydraulic pressure can be lost without a large visible puddle

A master cylinder can bypass internally, while a concentric slave cylinder may leak inside the bellhousing. Pressure and movement tests remain important even when the engine bay appears dry.

Symptom Overview

Common Symptoms When the Clutch Pedal Goes to the Floor

Sudden pressure loss often appears alongside difficult gear selection, falling fluid level, pumping response or visible leakage. The symptom combination helps distinguish hydraulic failure from a broken cable or pedal linkage.

Pedal Drops Suddenly

Normal resistance disappears during one pedal application.

No Pedal Resistance

The pedal moves freely because pressure or mechanical connection has been lost.

Soft or Spongy Pedal

Air, fluid loss or hose expansion reduces hydraulic firmness.

Pedal Sinks Under Pressure

A master or slave cylinder may be bypassing internally.

Pressure Returns After Pumping

Repeated pedal strokes temporarily rebuild hydraulic pressure.

Pedal Remains on the Floor

The operating system cannot return the pedal normally.

First Gear Is Difficult

The clutch does not disengage enough to unload the gearbox.

Reverse Gear Grinds

The gearbox input shaft continues rotating with the clutch pedal pressed.

Gears Select With Engine Off

This supports clutch-release failure rather than a locked selector mechanism.

Vehicle Creeps Forward

The clutch remains partly engaged despite full pedal travel.

Engine Stalls When Stopping

The clutch remains engaged as road speed reaches zero.

Low Fluid Level

Hydraulic fluid has leaked or the reservoir feed has been uncovered.

Fluid in the Footwell

Master-cylinder or reservoir-feed leakage may be present.

Fluid Near the Gearbox

An external or concentric slave cylinder may have failed.

Sudden Snap or Crack

A clutch cable, pedal quadrant, clevis pin or linkage may have broken.

Intermittent Pressure

Cylinder seals may work during one stroke and bypass during another.

Changing Bite Point

Inconsistent release travel alters where the clutch engages.

Clutch Slip or Judder Afterwards

An internal slave-cylinder leak may have contaminated the clutch.

Do not continue driving because the pedal pressure returned once

Intermittent hydraulic pressure is evidence of an active fault. The pedal can drop again at the next junction or gear change.

Complete Pressure Loss

Why Does the Clutch Pedal Have No Resistance?

A clutch pedal with almost no resistance normally means that hydraulic pressure cannot be created or the mechanical connection between the pedal and clutch-release mechanism has separated.

Empty Hydraulic Circuit

Major fluid loss leaves insufficient fluid to transfer pedal force.

Master-Cylinder Failure

Internal seals no longer build pressure when the pedal moves.

Slave-Cylinder Failure

Fluid escapes or bypasses rather than moving the release mechanism.

Burst Hose or Pipe

Hydraulic fluid leaves the system rapidly during pedal use.

Broken Clutch Cable

The pedal is no longer connected to the gearbox release arm.

Detached Pedal Linkage

A clevis pin, retaining clip, pushrod or cable fitting has separated.

Failed Pedal Quadrant

A plastic or metal cable-adjustment mechanism may have broken.

Disconnected Release Arm

External linkage no longer transfers movement into the bellhousing.

Severe Internal Release Failure

A fork, bearing or pressure-plate component may have collapsed.

No-resistance pattern	More likely cause	First inspection
Fluid reservoir is empty	Major hydraulic leak	Master, pipe, hose and slave cylinder
Fluid level is normal but pedal will not build pressure	Internal cylinder bypass	Master and slave-cylinder pressure test
Failure followed a snap	Broken cable or pedal linkage	Pedal box, cable ends and release arm
Fluid leaks from bellhousing	Concentric slave-cylinder failure	Recover and prepare for gearbox removal
Pedal linkage moves but release arm does not	Cable or external connection failure	Trace movement along the complete linkage
External movement is present but clutch does not release	Internal fork, bearing or pressure-plate fault	Internal clutch-release inspection

No pedal resistance should be treated as a breakdown

Do not attempt a normal road journey. The clutch may not disengage for stopping or gear changes, and starting the vehicle in gear can cause unexpected movement.

Reduced Hydraulic Pressure

Why Does the Clutch Pedal Feel Soft or Spongy?

A soft or springy pedal normally indicates that part of the pedal movement is compressing air, expanding a damaged hose or bypassing worn cylinder seals instead of moving the slave cylinder fully.

Air in the Hydraulic Circuit

Trapped air compresses and reduces effective release travel.

Low Fluid Level

The master cylinder may draw air from an uncovered reservoir feed.

Master-Cylinder Bypass

Fluid passes worn seals rather than being pushed through the line.

Slave-Cylinder Bypass

Pressure is lost inside the slave cylinder before full release movement occurs.

Expanding Flexible Hose

A weakened hose absorbs pressure by swelling.

Incomplete Bleeding

Air remains trapped after repair or hydraulic-system opening.

Incorrect Bleeding Procedure

Some systems require pressure, vacuum or a specified sequence.

Fluid Contamination

Water, dirt or incorrect fluid can damage seals and alter response.

Loose Hydraulic Connection

A poor union or connector may admit air without a large visible leak.

A soft pedal is a hydraulic symptom, not proof of clutch wear

Inspect fluid pressure and slave-cylinder travel before condemning the friction plate, pressure plate or flywheel.

Temporary Pressure Recovery

Why Does Pumping the Clutch Pedal Restore Pressure?

Repeated pedal strokes can temporarily compress trapped air, move additional fluid or overcome internal cylinder bypass. The pedal may become firmer for several gear changes before losing pressure again.

Air Is Compressed Repeatedly

Multiple strokes can create enough temporary slave-cylinder movement to release the clutch.

Master Seals Build Pressure Intermittently

Worn seals may hold during one stroke and bypass during another.

Remaining Fluid Is Repositioned

Pumping can temporarily move fluid through a partly empty circuit.

Slave Movement Increases Briefly

Repeated strokes may extend the slave cylinder farther.

Pressure Falls Again

Leakage, air or internal bypass remains after pumping stops.

Gear Selection Temporarily Improves

Increased release travel may briefly unload the gearbox input shaft.

Pumping result	Possible explanation	Required diagnosis
Pedal becomes firm after several strokes	Air or internal cylinder bypass	Leak check and cylinder-pressure test
Pedal firms but quickly becomes soft again	Active leak or severe bypass	Locate the failed component immediately
Pumping has no effect	Major fluid loss or broken mechanical connection	Inspect fluid circuit, cable and pedal linkage
Pedal firms only when cold	Temperature-sensitive seals or fluid behaviour	Compare cold and hot hydraulic pressure
Gear selection improves after pumping	Release travel was previously insufficient	Measure master and slave-cylinder travel

Pumping is not an emergency repair for continued driving

The pressure can disappear during the next gear change. Use the response only as diagnostic evidence and arrange recovery where normal operation is unreliable.

Incomplete Clutch Release

Why Does Pressure Loss Make Gears Difficult to Select?

The clutch must disengage far enough to stop engine torque reaching the gearbox input shaft. If hydraulic or cable movement is lost, the input shaft remains driven and places load on the gear selectors and synchronisers.

First Gear Resists Selection

The stationary gearbox remains loaded by the rotating input shaft.

Reverse Gear Grinds

Reverse commonly exposes clutch drag because it may lack full synchronisation.

Vehicle Creeps With Pedal Down

Partial clutch engagement continues to transmit torque.

Engine Stalls at a Stop

The clutch remains engaged as vehicle speed reaches zero.

Gear Lever Feels Locked

Drivetrain load prevents the selector mechanism moving freely.

Gears Select With Engine Off

Removing engine rotation unloads the gearbox and supports a clutch-release fault.

Gear-selection behaviour	Possible meaning	Recommended response
Gears select normally with engine off	Clutch is not disengaging fully	Diagnose release pressure and travel
Reverse grinds with pedal fully down	Input shaft remains rotating	Stop forcing gear selection
Vehicle creeps in first gear	Significant clutch drag	Stop driving and arrange repair
Gears remain difficult with engine off	Selector or gearbox fault may also be present	Inspect linkage and gearbox separately
Vehicle remains stuck in gear	Complete release failure	Switch off safely and arrange recovery

Forcing the gear lever can turn one failure into two

Hydraulic or cable repair may be relatively straightforward. Damaged synchronisers, selectors or gear teeth can add major gearbox costs.

Hydraulic Fluid Loss

Why Is the Clutch-Fluid Level Low?

Hydraulic clutch fluid does not normally disappear through use. A falling level indicates external leakage, a damaged connection or fluid escaping into the bellhousing through an internal slave cylinder.

Many vehicles share one reservoir between the brake and clutch systems. The clutch feed may sit higher in the reservoir, allowing clutch operation to fail before the brake-fluid warning level is reached.

Master-Cylinder Leak

Fluid may escape around the pushrod, footwell or bulkhead.

Reservoir Feed Leak

A hose, seal or connector between the reservoir and master cylinder may fail.

Rigid Pipe Corrosion

Corrosion or impact damage can create a pinhole or split.

Flexible Hose Leak

Cracks, abrasion or failed crimp joints allow fluid to escape.

Hydraulic Union Leak

Damaged seats, seals or retaining clips can leak under pressure.

External Slave-Cylinder Leak

Fluid appears around the gearbox-mounted cylinder or dust boot.

Concentric Slave-Cylinder Leak

Fluid escapes inside the bellhousing and may contaminate the clutch.

Incorrect Bleed-Screw Seal

A loose or damaged bleed point can release fluid and draw air.

Previous Repair Not Bled Correctly

The apparent level may fall as trapped air moves through the circuit after repair.

Visible External Leak

Common Evidence

✓ Fluid around the clutch pedal.
✓ Dampness on the bulkhead.
✓ Wet hydraulic pipe or hose.
✓ Fluid around an external slave cylinder.
✓ Drips beneath the engine or gearbox.

Internal Slave-Cylinder Leak

Common Evidence

! Fluid level falls with no obvious external leak.
! Fluid emerges from the bellhousing.
! Pedal pressure repeatedly disappears.
! Clutch slip or judder develops afterwards.
! A burning smell follows contamination.

Do not keep topping up fluid without repairing the leak

Fluid can be lost suddenly, and air already inside the system can prevent reliable clutch operation even after the reservoir is refilled.

Common Causes

Common Causes of a Clutch Pedal Going to the Floor

Sudden pedal pressure loss is usually caused by hydraulic leakage, internal cylinder failure or a broken mechanical connection. Ordinary clutch friction wear is less likely to make the pedal drop suddenly by itself.

Low Clutch Fluid

A leak lowers the reservoir level and allows air into the hydraulic circuit.

Master-Cylinder External Leak

Fluid escapes near the pedal, pushrod or bulkhead.

Master-Cylinder Internal Bypass

Worn seals allow fluid to pass the piston without an obvious external leak.

External Slave-Cylinder Leak

Fluid escapes at the gearbox and release travel is lost.

Concentric Slave-Cylinder Failure

Internal leakage inside the bellhousing causes sudden pressure loss and possible clutch contamination.

Air in the Hydraulic System

Air compresses and reduces movement reaching the slave cylinder.

Burst Flexible Hose

A split hose or failed crimp joint releases fluid under pressure.

Expanded Hydraulic Hose

A weakened hose absorbs pedal force by swelling.

Corroded Hydraulic Pipe

Rust can create a leak that becomes severe during pedal use.

Failed Pipe Union or Connector

A damaged seal, clip or union allows pressure and fluid loss.

Broken Clutch Cable

The pedal loses its mechanical connection to the release arm.

Detached Cable End

A failed clip or fitting separates the cable at the pedal or gearbox.

Failed Pedal Quadrant

An automatic adjuster or cable quadrant can break suddenly.

Detached Master Pushrod

A clevis pin or retaining clip fails at the pedal connection.

Cracked Pedal Bracket

Structural movement prevents full pressure generation.

Release-Fork Failure

A cracked, bent or detached fork stops movement reaching the clutch.

Release-Bearing Collapse

Bearing damage can remove normal resistance or jam the release system.

Pressure-Plate Failure

Broken diaphragm fingers can cause sudden abnormal pedal movement.

Symptom pattern	More likely cause	First diagnostic area
Soft pedal with low fluid	External hydraulic leak	Master, pipe, hose and slave cylinder
Pedal sinks but fluid level stays normal	Internal master or slave-cylinder bypass	Hydraulic pressure testing
Pressure improves after pumping	Air, leakage or internal seal failure	Leak test and correct bleeding
Fluid appears in the footwell	Master-cylinder leak	Pedal-side hydraulic components
Fluid emerges from bellhousing	Concentric slave-cylinder failure	Gearbox removal and clutch inspection
Pedal drops after a snap with no fluid loss	Broken cable or pedal linkage	Pedal box, cable and release arm
External mechanism moves but clutch does not release	Fork, bearing or pressure-plate failure	Internal clutch-release system

Diagnose the pressure path before replacing the clutch

The friction plate may be serviceable even though the pedal has failed. Prove whether pressure or mechanical movement is lost before authorising internal clutch replacement.

Hydraulic Pressure Input

Clutch Master-Cylinder Failure

The clutch master cylinder creates hydraulic pressure when the pedal is pressed. If its seals leak externally, bypass internally or its piston fails to move correctly, the pedal may sink to the floor without producing enough slave-cylinder travel.

An internally bypassing master cylinder may leave the reservoir level unchanged because the fluid remains inside the hydraulic circuit. This is why the absence of an obvious leak does not prove the master cylinder is healthy.

External Pushrod-Seal Leak

Fluid escapes around the master-cylinder pushrod and may enter the driver's footwell.

Internal Seal Bypass

Hydraulic fluid passes the piston seals instead of being forced towards the slave cylinder.

Piston Bore Damage

Corrosion, scoring or contamination prevents the seals holding pressure consistently.

Broken Internal Spring

The piston may not return or prepare correctly for the next pedal stroke.

Blocked Compensation Port

Fluid cannot move correctly between the cylinder and reservoir as pedal position changes.

Restricted Reservoir Feed

A blocked hose, seal or connector prevents the cylinder receiving sufficient fluid.

Detached Pushrod

A failed clevis pin or retaining clip disconnects the pedal from the cylinder piston.

Incorrect Pushrod Adjustment

Incorrect free play can reduce piston stroke or prevent full hydraulic compensation.

Loose Cylinder Mounting

Bulkhead or bracket movement absorbs pedal travel instead of creating pressure.

Master Cylinder More Likely

Supporting Evidence

✓ Fluid is visible near the clutch pedal.
✓ The pedal sinks under steady pressure.
✓ Pumping the pedal creates temporary pressure.
✓ Master-cylinder output is inconsistent.
✓ No broken clutch cable is fitted.
✓ The pushrod or pedal connection is damaged.

Other Faults Still Possible

Do Not Overlook...

! A leaking slave cylinder.
! A restricted or expanding hydraulic hose.
! Air entering elsewhere in the system.
! A loose hydraulic connector.
! A failed pedal bracket or clevis pin.
! Internal clutch-release resistance.

Master-cylinder result	Possible interpretation	Repair direction
Fluid leaks around the pedal pushrod	External master-cylinder seal failure	Replace the cylinder and bleed the system
Pedal sinks with no external leak	Internal seal bypass	Confirm pressure loss and replace the cylinder
Piston does not return completely	Binding piston, pushrod or compensation fault	Inspect adjustment and cylinder condition
Pedal moves but master pushrod does not	Clevis, clip or pedal-linkage failure	Repair the mechanical connection
Master output is strong and stable	Fault may be downstream	Test the hose and slave cylinder
Replacement cylinder gives abnormal travel	Incorrect part, pushrod or installation	Verify compatibility and pedal geometry

A dry engine bay does not rule out master-cylinder failure

Internal bypass can allow the pedal to fall without losing fluid externally. The cylinder must be assessed by pressure generation and pressure-holding ability.

Hydraulic Pressure Output

Clutch Slave-Cylinder Failure

The slave cylinder receives hydraulic pressure from the master cylinder and converts it into clutch-release movement. A leak, seized piston or internal seal failure can leave the pedal on the floor and prevent the clutch disengaging.

Slave cylinders may be mounted externally on the gearbox or fitted concentrically around the gearbox input shaft inside the bellhousing. Internal concentric units normally require gearbox removal.

External Seal Leak

Fluid escapes around the piston, dust boot or cylinder body.

Internal Seal Bypass

Pressure is lost inside the cylinder without a large visible leak.

Piston Seizure

Corrosion or bore damage prevents normal movement.

Concentric Seal Failure

Fluid leaks inside the bellhousing and may contaminate the clutch.

Concentric Bearing Failure

The combined slave cylinder and release bearing may collapse or bind.

Over-Extended Piston

Incorrect release geometry can push the slave cylinder beyond its designed travel.

Loose External Mounting

Cylinder movement absorbs hydraulic travel instead of moving the release arm.

Damaged Pushrod

A bent, detached or incorrectly seated rod fails to operate the release fork.

Incorrect Replacement Cylinder

Wrong bore size or piston travel can prevent correct clutch release.

External Slave Failure

Typical Evidence

✓ Fluid is visible on the gearbox casing.
✓ The dust boot is wet.
✓ Slave movement is reduced or inconsistent.
✓ The piston does not return normally.
✓ Gearbox removal is not usually needed.

Concentric Slave Failure

Typical Evidence

! Fluid emerges from the bellhousing.
! No external gearbox cylinder is fitted.
! The reservoir level falls repeatedly.
! Clutch slip or judder follows the leak.
! Gearbox removal is normally required.

Slave-cylinder finding	Likely effect	Recommended repair
External cylinder is visibly leaking	Fluid and pressure loss	Replace the cylinder and bleed correctly
External piston moves too little	Insufficient clutch-release travel	Separate upstream pressure loss from cylinder failure
External piston extends but does not return	Sticking cylinder or trapped pressure	Test the hose and master-cylinder compensation
Fluid appears from the bellhousing	Concentric slave-cylinder leak	Remove the gearbox and inspect the clutch
Pedal loses pressure with no external leak	Master or slave internal bypass	Pressure-test the complete circuit
New slave over-extends or fails quickly	Incorrect geometry or installation	Check component compatibility and release travel

Internal slave-cylinder leakage can ruin a serviceable clutch

Hydraulic fluid on the friction plate can cause slip, judder and heat damage. The clutch and flywheel should be assessed when the gearbox is removed.

Cylinder Comparison

Master Cylinder vs Slave Cylinder Failure

The master cylinder creates pressure at the pedal, while the slave cylinder converts that pressure into movement at the gearbox. Either component can cause a pedal to fall to the floor, but the leak location and test results differ.

Master Cylinder

Creates Hydraulic Pressure

✓ Mounted near the clutch pedal or bulkhead.
✓ Connected directly to the pedal pushrod.
✓ May leak into the driver's footwell.
✓ Can bypass internally with no visible leak.
✓ Pedal may sink under steady pressure.
✓ Usually accessible without gearbox removal.

Slave Cylinder

Creates Clutch-Release Movement

✓ Mounted on or inside the gearbox.
✓ Operates the release arm or bearing.
✓ External units may leak onto the gearbox.
✓ Concentric units can leak into the bellhousing.
✓ Failure reduces clutch-release travel.
✓ Internal units normally require gearbox removal.

Comparison point	Master cylinder	Slave cylinder
Primary purpose	Create hydraulic pressure	Convert pressure into release movement
Typical location	Pedal or bulkhead area	Gearbox exterior or bellhousing interior
Common visible leak	Footwell or engine-bay bulkhead	Gearbox casing or bellhousing
Internal bypass possible	Yes	Yes
Pedal sinks under steady pressure	Common evidence	Also possible
Pumping improves pressure	Possible	Possible
Gearbox removal required	Normally no	Only for a concentric internal unit
Clutch contamination risk	Low unless fluid reaches bellhousing	High with concentric leakage

Do not diagnose by pedal feel alone

Master and slave-cylinder faults can produce similar soft or sinking pedals. Compare pressure before and after the hydraulic line and inspect the precise leak location.

Hydraulic Transfer Faults

Clutch Hydraulic Hose and Pipe Faults

The hydraulic pipe and flexible hose must carry pressure without leaking, expanding or restricting flow. A failed connection can cause immediate pressure loss, while a weakened hose may create a gradually softening pedal.

Burst Flexible Hose

A split hose can release most of the hydraulic fluid during one pedal application.

Hose Crimp Failure

Fluid leaks where the flexible section joins its metal fitting.

Hose Expansion

A weakened hose swells and absorbs pressure instead of moving the slave cylinder.

Internal Hose Collapse

A damaged inner lining restricts flow and creates inconsistent clutch operation.

Corroded Rigid Pipe

Rust weakens the hydraulic line until a pinhole or split forms.

Kinked Hydraulic Pipe

Accident damage or incorrect routing reduces fluid movement.

Damaged Flared Union

A poor sealing surface leaks when pedal pressure rises.

Failed Quick Connector

A seal or retaining clip can release suddenly.

Loose Bleed Screw

Fluid escapes and air enters through the bleed point.

Heat-Damaged Hose

Exhaust or engine heat weakens the rubber and surrounding fittings.

Abrasion Damage

Contact with brackets, bodywork or rotating parts wears through the hydraulic line.

Incorrect Replacement Line

Wrong fittings, length or internal diameter can affect pressure and bleeding.

Leak Failure Pattern

Typical Evidence

✓ Fluid level falls.
✓ Pipework or fittings are visibly wet.
✓ Pedal pressure disappears suddenly.
✓ Air returns after bleeding.
✓ Drips appear during pedal operation.

Expansion or Restriction Pattern

Typical Evidence

! Pedal feels soft despite no major leak.
! Hose visibly swells under pressure.
! Slave-cylinder travel is reduced.
! Pedal return or pressure changes when hot.
! Opening the circuit changes trapped pressure.

A hose can be faulty even when its outer surface looks intact

Internal lining damage and pressure expansion may only appear while the pedal is being operated. Dynamic inspection can be more useful than a visual check alone.

Compressible Hydraulic Fault

Air in the Clutch Hydraulic System

Hydraulic fluid transfers pedal movement because it compresses very little. Air compresses significantly, so part of the pedal stroke is lost before enough pressure reaches the slave cylinder.

Air usually enters because fluid has leaked, the reservoir ran low or the hydraulic system was opened during repair. Bleeding is only a permanent solution after the entry point has been corrected.

Reservoir Ran Low

The master cylinder drew air through its fluid-feed connection.

External Leak

Fluid escapes and air enters through a cylinder, pipe, hose or union.

System Opened During Repair

Air remains after cylinder, hose or clutch work.

Incorrect Bleeding Sequence

Air remains trapped because the required procedure was not followed.

Concentric Slave Air Pocket

Internal slave-cylinder design may trap air at a high point.

Loose Bleed Connection

Air is drawn back into the system during bleeding.

Master Cylinder Not Bench-Bled

Air remains inside a replacement cylinder where the procedure requires preparation.

Shared Reservoir Feed Exposed

The clutch circuit draws air before the main reservoir appears completely empty.

Incorrect Fluid-Filling Method

Rapid or incomplete filling can leave air throughout the hydraulic circuit.

Air-related symptom	Likely explanation	Correct response
Pedal feels spongy	Air compresses during pedal movement	Find the entry point and bleed correctly
Pumping improves pressure	Repeated strokes compress or reposition air	Inspect for leakage before bleeding
Air returns after several days	An active leak or poor connection remains	Pressure-test the hydraulic circuit
New parts fitted but pedal remains soft	Incomplete bleeding or incorrect installation	Follow the vehicle-specific bleeding method
Pressure improves briefly after bleeding	Fault source has not been corrected	Check cylinders, hose, pipe and connectors

Air does not repeatedly enter a properly sealed system

If the pedal becomes soft again after bleeding, investigate the leak, loose connection, failed seal or incorrect bleeding procedure rather than bleeding it repeatedly.

Mechanical Pressure Loss

Can a Broken Clutch Cable Make the Pedal Fall to the Floor?

Yes. On a cable-operated clutch, the cable provides the mechanical connection between the pedal and gearbox release arm. A complete break can remove pedal resistance instantly.

Cable systems do not use clutch hydraulic fluid. A sudden pedal drop with no visible fluid system or leakage therefore points towards the cable, pedal quadrant, end fittings or release arm.

Snapped Inner Cable

The steel cable breaks and no longer transfers pedal force.

Frayed Cable Finally Breaks

Progressive strand damage ends in sudden complete failure.

Detached Pedal End

A hook, clip or cable nipple separates from the pedal.

Detached Gearbox End

The cable separates from the release arm or support bracket.

Broken Automatic Adjuster

A ratchet or quadrant releases cable tension suddenly.

Collapsed Outer Casing

The casing fails and absorbs pedal travel.

Broken Bulkhead Mount

The cable support moves instead of transmitting pedal force.

Failed Release-Arm Connection

A pin, clip or lever connection breaks at the gearbox.

Incorrect Cable Installation

Poor routing or wrong adjustment causes early failure.

Broken Cable More Likely

Supporting Evidence

✓ Pedal dropped after a snap.
✓ Almost no pedal resistance remains.
✓ The vehicle has no clutch hydraulic circuit.
✓ Cable movement is absent at the gearbox.
✓ A loose or frayed cable is visible.
✓ Pumping the pedal makes no difference.

Further Inspection Needed

Also Check...

! Pedal quadrant and adjuster condition.
! Cable support brackets.
! Gearbox release-arm movement.
! Fork and pivot resistance.
! Whether a heavy clutch caused the cable failure.
! Correct replacement cable routing.

Replacing the cable alone may not correct the root cause

A seized release arm, heavy pressure plate or damaged pedal mechanism can overload the new cable and cause another failure.

Pedal Connection Failure

Clutch Pedal and Linkage Faults

The clutch pedal must remain securely connected to the master- cylinder pushrod or cable. A broken pin, retaining clip, quadrant or pedal bracket can make the pedal fall without any hydraulic or clutch friction failure.

Clevis Pin Failure

The pin connecting the pedal and pushrod wears through or breaks.

Retaining Clip Detaches

The pushrod or cable end separates from the pedal.

Elongated Pedal Hole

Wear creates excessive lost movement and can release the linkage.

Cracked Pedal Arm

The pedal bends or fractures rather than moving the operating system.

Cracked Pedal Bracket

The mounting structure flexes or fails under load.

Bulkhead Failure

Metal around the master cylinder or cable mount cracks and moves.

Failed Cable Quadrant

A plastic or metal sector breaks and releases cable tension.

Master Pushrod Breakage

The pushrod fractures or separates from the piston.

Incorrect Pedal Assembly

Missing spacers, clips or incorrectly fitted parts cause misalignment.

Pedal-linkage result	Possible fault	Repair direction
Pedal moves but pushrod remains still	Clevis, clip or pedal-hole failure	Repair the pedal connection
Pedal bracket moves visibly	Cracked bracket or bulkhead	Repair or replace the structural mounting
Cable goes slack at the pedal	Quadrant or cable-end failure	Inspect the complete cable mechanism
Pushrod is connected but has excessive play	Worn pin, bush or pedal hole	Renew worn linkage parts
Failure followed recent pedal work	Incorrect reassembly or missing retaining hardware	Compare assembly with the correct specification

Inspect the pedal connection before replacing hydraulic parts

A disconnected pushrod can imitate complete master-cylinder failure while the hydraulic components remain serviceable.

Internal Clutch Failure

Internal Release-System Faults

If hydraulic pressure or cable movement reaches the gearbox but the clutch still does not release, the fault may be inside the bellhousing. Release-fork, bearing and pressure-plate failures can alter pedal resistance suddenly.

Cracked Release Fork

The fork bends or separates instead of moving the release bearing.

Fork Pivot Failure

A worn or broken pivot changes leverage and release travel.

Fork Retaining-Clip Failure

The fork or bearing moves out of its correct position.

Release-Bearing Collapse

Internal bearing failure removes normal support and movement.

Release Bearing Off Its Guide

Misalignment prevents force reaching the pressure plate correctly.

Damaged Guide Tube

Cracking or distortion interferes with bearing travel.

Broken Diaphragm Fingers

Pressure-plate spring fingers fracture or collapse.

Pressure-Plate Cover Failure

Structural damage causes sudden abnormal release movement.

Incorrect Clutch Installation

Wrong parts or assembly error creates incorrect release geometry.

Concentric Slave Collapse

The internal hydraulic bearing unit fails mechanically or hydraulically.

Bellhousing Misalignment

Incorrect gearbox alignment causes release parts to bind or over-travel.

Severe Clutch Overheating

Heat damage weakens pressure-plate and release components.

Internal Fault More Likely

Supporting Evidence

✓ Master-cylinder output is correct.
✓ Slave-cylinder travel reaches specification.
✓ Cable or release-arm movement is present.
✓ Clutch still fails to disengage.
✓ Failure followed a crack or metallic noise.
✓ Recent clutch replacement preceded the fault.

Gearbox Removal Should Confirm

Required Findings

! Fork and pivot integrity.
! Release-bearing condition and alignment.
! Guide-tube condition.
! Pressure-plate diaphragm condition.
! Clutch contamination or heat damage.
! Flywheel condition and component compatibility.

Gearbox removal should be supported by external test results

Confirm pedal, hydraulic or cable movement first unless fluid is clearly leaking from the bellhousing or internal mechanical failure is already evident.

Leak Location Guide

Where Does Clutch Hydraulic Fluid Leak?

Clutch-fluid leakage can occur anywhere from the reservoir and master cylinder to the pipework, flexible hose and slave cylinder. The location of the fluid often identifies the failed component.

Fluid Reservoir

Cracks, cap damage or an incorrect seal can allow leakage.

Reservoir Feed Hose

Age-hardened rubber and loose connections can leak at low pressure.

Master-Cylinder Pushrod Seal

Fluid enters the footwell around the clutch pedal.

Master-Cylinder Body

Housing cracks or failed seals leak around the bulkhead.

Master-Cylinder Outlet

A damaged union or quick connector leaks under pedal pressure.

Rigid Hydraulic Pipe

Corrosion, vibration or impact damage creates fluid loss.

Flexible Hose

Cracks, abrasion and failed crimps leak as pressure rises.

Pipe and Hose Connectors

Damaged seals, clips or flared seats allow leakage and air entry.

Bleed Screw

A loose screw or damaged seat leaks around the bleed point.

External Slave-Cylinder Seal

Fluid collects inside the dust boot or on the gearbox casing.

Slave-Cylinder Connection

The inlet fitting or seal can fail independently of the cylinder.

Concentric Slave Cylinder

Fluid leaks inside the bellhousing around the gearbox input shaft.

Fluid location	Likely source	Repair implication
Driver's footwell	Master-cylinder pushrod seal or feed connection	Pedal-side hydraulic repair
Engine-bay bulkhead	Master-cylinder body, outlet or reservoir feed	Inspect the master cylinder and connections
Along hydraulic pipework	Corroded pipe, union or hose	Replace the damaged line and bleed the system
Outside gearbox near slave cylinder	External slave-cylinder or inlet leak	External cylinder repair usually possible
Bottom of bellhousing	Concentric slave cylinder or another internal fluid leak	Gearbox removal normally required
No visible fluid but pedal sinks	Internal master or slave-cylinder bypass	Hydraulic pressure testing required

Identify the fluid before deciding which component failed

Engine oil, gearbox oil and hydraulic fluid can all appear near the bellhousing. Colour, smell, viscosity and fluid-level changes help distinguish the source.

A shared brake-and-clutch reservoir requires additional care

A falling level may eventually affect the braking system as well as the clutch. Do not continue driving until the source and remaining system safety have been confirmed.

Professional Diagnosis

Clutch Pedal Goes-to-Floor Diagnostic Process

Diagnosis should begin by confirming whether the pedal lost hydraulic pressure or became mechanically disconnected. The technician should follow the operating path from the pedal towards the gearbox before deciding whether internal clutch inspection is required.

1. Secure the Vehicle

Park safely, apply the parking brake, switch off the engine and select neutral where possible.

2. Record How It Failed

Establish whether the pedal dropped suddenly, softened gradually or failed after a snap, leak or recent repair.

3. Assess Pedal Resistance

Classify the pedal as soft, spongy, loose, sinking, heavy or completely disconnected.

4. Identify the Operating System

Confirm whether the vehicle uses hydraulic, cable or automated clutch operation.

5. Inspect Pedal Linkage

Check the clevis pin, pushrod, clips, cable quadrant, bushes and mounting bracket.

6. Check the Fluid Reservoir

Record fluid level, specification, contamination and whether the reservoir is shared with the braking system.

7. Inspect for External Leakage

Check the footwell, bulkhead, pipework, hose, unions and external slave cylinder.

8. Inspect the Bellhousing

Look for hydraulic fluid that may indicate concentric slave- cylinder failure.

9. Test Master-Cylinder Output

Confirm that the master cylinder builds and holds pressure through its full stroke.

10. Test Hose and Pipe Integrity

Check leakage, swelling, restriction and pressure loss across the hydraulic line.

11. Measure Slave-Cylinder Travel

Compare actual movement with specification where an external cylinder or release arm is visible.

12. Check Pressure Retention

Determine whether pressure falls because of internal bypass or external leakage.

13. Inspect Cable Continuity

On cable systems, check both end fittings, casing, adjuster and gearbox-arm movement.

14. Compare Gear Selection

Selection with the engine running and stopped helps confirm incomplete clutch disengagement.

15. Bleed After Repairs

Use the correct fluid and manufacturer-specific method only after leakage or component failure has been corrected.

16. Inspect Internally if Justified

Remove the gearbox where a concentric slave cylinder, fork, bearing or pressure plate has failed.

17. Assess Clutch Contamination

Check the friction plate, pressure plate and flywheel where hydraulic fluid entered the bellhousing.

18. Verify the Repair

Confirm stable pedal pressure, full return, correct release travel and safe gear selection hot and cold.

Diagnostic finding	Likely fault direction	Next action
Pedal moves but pushrod or cable does not	Pedal linkage or connection failure	Repair the clevis, clip, quadrant or pedal assembly
Fluid is low with visible external leakage	Master, pipe, hose or external slave-cylinder fault	Repair the leak and bleed the system
Pedal sinks with no visible leak	Internal master or slave-cylinder bypass	Pressure-test the cylinders
Master output is correct but slave travel is low	Hydraulic-line or slave-cylinder fault	Isolate the hose, pipe and slave cylinder
Fluid emerges from the bellhousing	Concentric slave-cylinder failure	Remove the gearbox and inspect the clutch
Cable has no continuity	Broken or detached clutch cable	Replace the cable and inspect its operating load
External movement is correct but clutch stays engaged	Internal fork, bearing or pressure-plate fault	Proceed to internal clutch inspection
Pedal pressure returns after repair and bleeding	Hydraulic operation restored	Verify no further pressure or fluid loss

Do not replace both cylinders by guesswork

Testing pressure generation, pressure retention and slave- cylinder travel can identify whether the master cylinder, line or slave cylinder is responsible.

Record fluid movement as well as pedal movement

A pedal can travel normally while pressure bypasses internally. Hydraulic output and release travel provide stronger evidence than pedal position alone.

Safe Initial Checks

Safe Checks When the Clutch Pedal Goes to the Floor

Owner checks should be limited to visible pedal, fluid and external leak observations. Do not road-test the vehicle when clutch pressure is absent or unreliable.

1. Stop in a Safe Position

Apply the parking brake and switch off the engine as soon as it is safe.

2. Select Neutral if Possible

Do not force the gear lever if drivetrain load prevents movement.

3. Observe the Pedal

Record whether it remains down, rises slowly or returns when lifted.

4. Note the Pedal Feel

Describe the resistance as soft, springy, loose or absent.

5. Check the Correct Reservoir

Inspect the fluid level without adding an unknown product.

6. Inspect the Footwell

Look for fluid around the pedal, master-cylinder pushrod and carpet.

7. Inspect Visible Pipework

Look for wet hydraulic pipes, hose connections and external slave-cylinder leakage.

8. Check for a Broken Cable

Where fitted and safely visible, inspect cable ends and obvious disconnection.

9. Record Pumping Response Once

Note whether pressure returns, but do not use repeated pumping to continue driving.

10. Look Beneath the Parked Car

Check for fresh fluid without crawling underneath the vehicle.

11. Record Any Noise

Note whether a snap, crack or metallic sound occurred as the pedal failed.

12. Arrange Recovery

Use professional recovery where normal clutch pressure has not returned reliably.

Safe Observations

You Can Check...

✓ Fluid level and reservoir condition.
✓ Fluid near the pedal or bulkhead.
✓ Visible pipe, hose or slave-cylinder leakage.
✓ Obvious broken cable or pedal connection.
✓ Whether pressure returns briefly after pumping.
✓ Whether gears select with the engine switched off.

Unsafe Actions

Never...

! Continue driving with no clutch pressure.
! Force the gear lever.
! Start the engine while unexpectedly in gear.
! Attempt clutchless gear changes.
! Crawl beneath an unsupported vehicle.
! Open pressurised hydraulic unions.
! Add an unidentified hydraulic fluid.

Brake and clutch systems may share one reservoir

A major fluid leak must not be dismissed as a clutch-only concern until the braking system and remaining reservoir level have been checked.

Workshop Inspection

What a Mechanic Checks When the Clutch Pedal Has No Pressure

Professional diagnosis should establish whether the system cannot create pressure, cannot retain pressure or cannot convert pressure into sufficient clutch-release movement.

Symptom History

The technician records sudden or gradual failure, pumping response and recent repairs.

Pedal Linkage

Clevis pins, clips, pushrods, quadrants and brackets are inspected.

Pedal Stroke

Total movement and lost motion are compared with specification.

Fluid Reservoir

Level, condition, specification and shared-system design are confirmed.

Footwell Leak Check

The master-cylinder pushrod and bulkhead are inspected for fluid.

Master-Cylinder Pressure

Output, internal bypass and pressure-holding ability are tested.

Rigid Pipe Inspection

Corrosion, impact damage, kinks and leaking unions are checked.

Flexible Hose Inspection

Leakage, expansion, internal restriction and crimp condition are assessed.

External Slave-Cylinder Travel

Application, leakage and piston return are measured.

Bellhousing Leak Check

Hydraulic fluid is distinguished from engine and gearbox oil.

Cable Continuity

Cable ends, casing, adjuster and release-arm movement are inspected where applicable.

Release-Arm Travel

External gearbox movement is compared with pedal or slave- cylinder input.

Hydraulic Bleeding

The correct pressure, vacuum or manual procedure is used after repairing the fault.

Gear-Selection Test

Engine-running and engine-off selection helps confirm clutch drag.

Gearbox Removal Decision

Internal inspection is authorised only when external results justify it.

Concentric Slave Inspection

Internal hydraulic leakage, bearing condition and over-travel are assessed.

Clutch and Flywheel Inspection

Fluid contamination, heat damage and friction condition are checked.

Post-Repair Verification

Pedal pressure, release travel, fluid level and gear selection are rechecked.

Pressure Diagnosis

The Garage Should Confirm...

✓ Whether the master cylinder creates pressure.
✓ Whether pressure is lost through the hydraulic line.
✓ Whether the slave cylinder converts pressure into movement.
✓ Whether internal bypass occurs.
✓ Whether air repeatedly enters the circuit.
✓ Whether a mechanical cable or linkage failed.

Internal Inspection

Gearbox Removal Should Confirm...

✓ Concentric slave-cylinder failure.
✓ Release-bearing or guide damage.
✓ Release-fork and pivot condition.
✓ Pressure-plate diaphragm integrity.
✓ Clutch-friction contamination.
✓ Flywheel condition and component compatibility.

Ask for an itemised diagnosis before approving major work

The quotation should identify whether the fault is in the master cylinder, hydraulic line, slave cylinder, cable, linkage or internal clutch-release system.

Electronic Diagnosis

Fault Codes and Live Data for Clutch Pressure Loss

Conventional manual clutch hydraulic systems usually have no pressure sensor and can fail completely without storing a diagnostic trouble code. Physical pressure, leakage and movement tests remain essential.

Electronic information may still assist where the vehicle uses a clutch switch, pedal-position sensor, automated manual gearbox or dual-clutch transmission.

Clutch Switch Status

Confirms whether the control module recognises the pedal as pressed or released.

Pedal-Position Sensor

Some vehicles report measured pedal travel.

Starter-Inhibit Status

Shows whether the starting system sees the required clutch input.

Cruise-Control Cancellation

A pedal-switch problem may affect cruise-control release.

Selected-Gear Data

Automated systems may show requested and actual gear position.

Clutch Actuator Position

Commanded and actual movement can reveal an automated-clutch fault.

Clutch Adaptation Values

Learned engagement and wear positions may be available.

Hydraulic Actuator Pressure

Automated transmissions may monitor their own controlled hydraulic pressure.

Transmission Fault Codes

Actuator, mechatronic, sensor and adaptation faults may be recorded.

Electronic result	Possible meaning	Next action
No fault codes on a manual clutch	Hydraulic or mechanical failure remains possible	Continue physical diagnosis
Clutch switch state is incorrect	Switch, adjustment, wiring or pedal issue	Inspect the pedal and switch circuit
Pedal-position value does not change	Sensor, linkage or electrical fault	Compare physical and electronic pedal movement
Actuator does not follow command	Automated clutch actuator or mechanical fault	Use transmission-specific testing
Adaptation is outside limits	Wear, installation or actuator problem	Inspect and recalibrate the system
Hydraulic actuator pressure is low	Automated-system pump, valve or leak fault	Follow the manufacturer's pressure tests

A clear code scan does not confirm clutch hydraulic health

Most ordinary manual clutch master cylinders, hoses and slave cylinders are not monitored electronically.

Emergency Response

What to Do When the Clutch Pedal Goes to the Floor

The immediate priority is to keep the vehicle controlled, avoid forcing the transmission and stop in the safest available location. The correct response depends on whether the failure occurs while moving, at a junction or before the journey begins.

Clutch pedal emergency guide showing safe actions when the pedal goes to the floor in traffic, at a junction, on a motorway, while parked and when hydraulic fluid is leaking — Figure 6: Emergency actions for sudden clutch-pedal pressure loss in traffic, at junctions, on faster roads and before starting a journey.

1. Stay Calm

Maintain steering control and avoid sudden braking or forced gear changes.

2. Lift Off the Accelerator

Reduce drivetrain load while assessing the safest place to stop.

3. Use the Current Gear Carefully

Do not force another gear if the clutch will not disengage.

4. Signal and Move to Safety

Leave the active carriageway where this can be done without creating greater risk.

5. Brake Progressively

Expect the engine to stall if the clutch remains engaged as the vehicle stops.

6. Apply the Parking Brake

Secure the vehicle before attempting to select neutral.

7. Switch Off the Engine

This removes engine torque and may allow the gear lever to move into neutral.

8. Activate Hazard Lights

Warn other road users where the vehicle creates an obstruction.

9. Leave the Vehicle Safely

On high-speed roads, follow official roadside safety guidance and remain away from moving traffic.

10. Check for Fluid Loss

Inspect only from a safe position without entering the carriageway or crawling beneath the car.

11. Do Not Restart in Gear

The vehicle can move unexpectedly as the starter operates.

12. Arrange Recovery

Tell the recovery service that the clutch pedal has lost pressure and the car may be stuck in gear.

Failure Before Starting

Do not begin the journey. Leave the engine off and arrange inspection or recovery.

Failure in Slow Traffic

Create space, signal early and stop in the safest available location.

Failure at a Junction

Secure the vehicle and use hazard lights if normal movement is no longer possible.

Failure on a Fast Road

Leave the live carriageway where safely possible and contact recovery services.

Vehicle Stuck in Gear

Switch off, apply the parking brake and do not force the gear lever.

Visible Fluid Leak

Do not top up and continue. The leak can worsen immediately.

Never attempt to drive home by starting the vehicle in gear

The vehicle may jump forward or backwards, particularly on a slope or in a confined area. Clutchless driving also places the gearbox and other road users at risk.

Driving Safety

Can You Drive When the Clutch Pedal Goes to the Floor?

Driving is not recommended when normal clutch-pedal pressure has been lost. The clutch may fail to disengage for stopping and gear changes, or it may remain disengaged and prevent drive reaching the wheels.

Topping up fluid or pumping the pedal may create temporary pressure, but neither action repairs the leak, damaged seal, broken hose or cable. The next failure may occur in a more dangerous location.

Stop and Recover

Do Not Continue Driving If...

! The pedal has no normal resistance.
! Pressure disappears repeatedly.
! Gears cannot be selected safely.
! The vehicle creeps with the pedal down.
! Fluid is leaking.
! The car remains stuck in gear.
! A cable or pedal linkage has broken.
! The clutch works only after repeated pumping.

Move Only to Immediate Safety

Limited Movement May Be Appropriate Only If...

✓ The vehicle must leave an immediate hazard.
✓ Movement does not require entering public traffic.
✓ The pedal currently operates predictably.
✓ The area ahead is clear.
✓ Recovery will follow immediately.

Loss of Gear Control

The driver may become unable to change gear or select neutral.

Unexpected Vehicle Creep

Partial clutch engagement can move the car with the pedal pressed.

Stalling at Junctions

The engine may stall because the clutch remains engaged.

Gearbox Damage

Forced selection can damage synchronisers and selector parts.

Complete Fluid Loss

A small leak can become a total hydraulic failure.

Brake-System Concern

A shared reservoir means severe fluid loss may require braking- system inspection.

Recovery is normally the lowest-risk and lowest-cost decision

A recovery charge can be far less than gearbox damage, collision risk or secondary clutch contamination caused by continuing to drive.

MOT Guide

Can a Clutch Pedal on the Floor Fail an MOT?

Loss of clutch-pedal pressure is not listed as a standalone clutch- condition item in the ordinary car MOT. However, the tester must be able to operate and position the vehicle safely throughout the inspection.

A vehicle that cannot be taken out of gear, moved onto the test equipment or controlled normally may not be capable of completing the test. Related hydraulic leakage and applicable warning lights may also have separate relevance.

Soft Pedal but Normal Operation

Not a Direct Clutch Item

Diagnose Before Testing

The developing fault may worsen during the appointment.

Pedal Goes Fully to the Floor

Vehicle Control Affected

Repair Before Test

The tester may be unable to operate the vehicle safely.

Vehicle Stuck in Gear

Test May Be Impossible

Recovery Required

Safe positioning on the test equipment may not be possible.

Hydraulic Fluid Leakage

Separate Defect Possible

Identify the Source

Fluid loss may affect another inspected system or vehicle safety.

Shared Brake Reservoir

Braking System Must Be Checked

Do Not Assume Clutch Only

The remaining brake-fluid level and system integrity require confirmation.

Valid Existing MOT

Not a Clutch Guarantee

Current Diagnosis Needed

A valid certificate does not confirm present hydraulic clutch condition.

Condition	Possible MOT effect	Recommended action
Pedal pressure remains normal	No pressure-loss concern evident	Continue normal preparation
Pedal is soft or intermittently loses pressure	Vehicle operation may become unreliable during testing	Diagnose and repair before the appointment
Pedal remains on the floor	Tester may be unable to move the vehicle	Arrange recovery and repair
Vehicle cannot be removed from gear	Safe test completion may be impossible	Do not drive to the test centre
Significant hydraulic leakage	May create an additional testable or safety defect	Locate and repair the leak
Brake and clutch share a low reservoir	Braking-system condition may also be relevant	Inspect both systems before use

An MOT appointment does not make an unsafe journey legal or sensible

Transport the vehicle where clutch pressure loss prevents normal control. Do not rely on pumping the pedal to reach the test centre.

UK Repair Costs

Typical UK Repair Costs When the Clutch Pedal Goes to the Floor

Repair cost depends on whether clutch pressure has been lost through an accessible master cylinder, external hydraulic line or cable, or through an internal slave cylinder and clutch-release assembly requiring gearbox removal.

These figures are broad UK planning estimates rather than fixed quotations. Vehicle layout, labour rate, component quality, corrosion, flywheel condition and secondary clutch contamination can all change the final price.

Initial Assessment

Clutch Pressure-Loss Diagnosis

£60–£180

Buying Risk: Low

Includes pedal, fluid, linkage, cable and initial hydraulic checks before parts are authorised.

Electronic Assessment

Diagnostic Scan

£50–£150+

Buying Risk: Low

Most useful for clutch switches, automated manuals and dual-clutch systems rather than a conventional hydraulic clutch.

Hydraulic Service

Clutch Hydraulic Bleeding

£60–£150+

Buying Risk: Low

Suitable after a leak or failed component has been repaired and trapped air must be removed.

Fluid Renewal

Clutch Fluid Replacement

£70–£160+

Buying Risk: Low

Includes the correct fluid and complete bleeding where the system is otherwise leak-free.

Pedal Connection

Clevis Pin or Retaining Clip

£70–£200+

Buying Risk: Low

Applies where a small pedal-linkage component has detached or worn through.

Pedal Mechanism

Pedal Bush and Pivot Repair

£120–£400+

Buying Risk: Medium

Cost depends on pedal-box access and whether the pedal arm or mounting bracket is damaged.

Structural Pedal Repair

Pedal Box or Bracket Repair

£250–£900+

Buying Risk: High

Dashboard access, welding or complete pedal-assembly replacement can increase labour.

Cable Adjustment

Clutch Cable Adjustment

£40–£100+

Buying Risk: Low

Appropriate only where the vehicle has a serviceable manually adjustable cable.

Cable Repair

Clutch Cable Replacement

£100–£300+

Buying Risk: Medium

Includes cable replacement, routing, adjustment and inspection of pedal and release-arm loading.

Cable Mechanism

Quadrant or Adjuster Replacement

£120–£350+

Buying Risk: Medium

Applies where the automatic adjuster, ratchet or pedal quadrant has failed.

Pedal-Side Hydraulics

Clutch Master Cylinder

£180–£450+

Buying Risk: Medium

Includes replacement, hydraulic bleeding and confirmation that the pedal builds and holds pressure.

External Gearbox Hydraulics

External Slave Cylinder

£150–£400+

Buying Risk: Medium

Normally replaced without gearbox removal where the cylinder is mounted externally.

Flexible Hydraulic Line

Clutch Hose Replacement

£120–£350+

Buying Risk: Medium

Suitable where a hose leaks, expands under pressure or restricts fluid movement.

Rigid Hydraulic Line

Clutch Pipe Replacement

£150–£500+

Buying Risk: Medium

Corrosion, seized unions and difficult routing can increase the labour required.

Hydraulic Connector

Union, Seal or Quick-Connector Repair

£90–£250+

Buying Risk: Low

Covers an isolated leaking connection where the surrounding pipework remains serviceable.

Combined External Hydraulics

Master and External Slave Cylinders

£350–£750+

Buying Risk: High

Both may be renewed where testing shows deterioration throughout an older hydraulic circuit.

Internal Hydraulic Unit

Concentric Slave Cylinder

£500–£1,200+

Buying Risk: High

Gearbox removal is normally required because the cylinder sits inside the bellhousing.

Internal Hydraulic and Clutch

Concentric Slave and Clutch Kit

£750–£1,700+

Buying Risk: Very High

Common where internal leakage has contaminated the friction plate or shared labour makes clutch renewal sensible.

Release Hardware

Release Fork or Pivot Repair

£450–£1,100+

Buying Risk: High

Gearbox removal may be required to replace a cracked fork, failed pivot or retaining hardware.

Internal Bearing

Release Bearing Replacement

£500–£1,200+

Buying Risk: High

Labour is similar to clutch replacement because the gearbox usually has to be removed.

Standard Clutch Repair

Clutch Kit Replacement

£600–£1,500+

Buying Risk: High

Normally includes the friction plate, pressure plate and release component.

Compact Vehicle

Small Petrol-Car Clutch

£500–£1,000+

Buying Risk: Medium

Straightforward front-wheel-drive vehicles can fall towards the lower end where access is reasonable.

Higher-Torque Vehicle

Diesel or Large-Vehicle Clutch

£800–£1,700+

Buying Risk: High

Larger components, difficult transmission access and greater torque capacity increase cost.

Flywheel Repair

Clutch and Dual-Mass Flywheel

£1,000–£2,500+

Buying Risk: Very High

Includes clutch parts, flywheel and shared gearbox-removal labour.

Fluid Contamination

Contaminated Clutch Repair

£800–£2,000+

Buying Risk: Very High

Includes correcting the hydraulic leak and replacing friction parts damaged by fluid.

Pressure-Plate Failure

Clutch-Cover Replacement

£650–£1,600+

Buying Risk: High

The complete clutch kit is normally renewed where diaphragm fingers or the pressure-plate cover fail.

Gearbox Removal Only

Gearbox Removal and Inspection

£400–£1,000+

Buying Risk: High

Labour varies greatly with subframe, driveshaft, transfer-box and four-wheel-drive layout.

Previous Repair Investigation

Post-Replacement Fault Diagnosis

£100–£300+

Buying Risk: Medium

Includes checking installed parts, bleeding, pedal travel, release geometry and warranty responsibility.

Installation Correction

Repeat Gearbox Removal

£600–£1,800+

Buying Risk: Very High

May be necessary where incorrect parts, over-travel or assembly error caused early failure.

Automated Manual

Clutch Actuator Diagnosis

£100–£300+

Buying Risk: Medium

Includes actuator commands, position values, calibration and transmission fault-code checks.

Automated Clutch Repair

Clutch Actuator Replacement

£400–£1,500+

Buying Risk: High

Final cost depends on actuator design, coding and whether the clutch also requires replacement.

Dual-Clutch Assessment

DCT or DSG Diagnosis

£100–£300+

Buying Risk: Medium

May include actuator travel, adaptation values, hydraulic pressure and mechatronic testing.

Dual-Clutch Repair

Dual-Clutch Pack Replacement

£1,200–£3,000+

Buying Risk: Very High

Specialist tools, calibration and transmission-specific procedures may be required.

Transmission Control

Mechatronic Unit Repair

£900–£2,500+

Buying Risk: Very High

Relevant only where an automated clutch-control system has a confirmed hydraulic or electronic fault.

These are broad UK planning estimates

Obtain a vehicle-specific written quotation showing parts, labour, fluid, VAT and whether clutch or flywheel replacement is conditional on inspection.

A low quotation may exclude the clutch after an internal leak

Where a concentric slave cylinder has leaked, confirm whether the garage has allowed for friction-plate contamination and flywheel assessment.

Cost Comparison

Clutch Pressure-Loss Repair Cost Comparison

External hydraulic and cable repairs usually cost less because the gearbox remains installed. Internal slave-cylinder, release- bearing and clutch repairs carry substantial gearbox-removal labour.

Repair or assessment	Typical UK range	Usually required when	Important consideration
Initial diagnosis	£60–£180	The failed area has not been proven	Should separate pressure loss from linkage failure
Hydraulic bleeding	£60–£150+	Air remains after a completed repair	Will not repair an active leak
Pedal linkage repair	£70–£400+	A clip, clevis, bush or pushrod has failed	Inspect bracket and pedal-box damage
Clutch cable	£100–£300+	The mechanical cable is broken or seized	Check release-arm loading before fitting another cable
Master cylinder	£180–£450+	The cylinder leaks or bypasses internally	Verify pedal connection and compensation
External slave cylinder	£150–£400+	An accessible gearbox-mounted cylinder fails	Gearbox removal is normally unnecessary
Hydraulic hose or pipe	£120–£500+	The line leaks, expands or restricts flow	Inspect the complete circuit for corrosion
Concentric slave cylinder	£500–£1,200+	The internal hydraulic unit fails	Clutch contamination must be assessed
Concentric slave and clutch	£750–£1,700+	Shared labour or fluid contamination justifies both	Inspect flywheel and rear seals
Release fork or bearing	£450–£1,200+	Internal clutch-release hardware has failed	Gearbox removal is normally required
Clutch and dual-mass flywheel	£1,000–£2,500+	The flywheel is worn or heat damaged	Require evidence and measurements where possible
Automated or dual-clutch repair	£400–£3,000+	An actuator, clutch pack or mechatronic fault is proven	Specialist calibration may be required

Compare itemised repair scopes rather than headline prices

Confirm whether each quotation includes diagnosis, hydraulic fluid, slave cylinder, clutch kit, flywheel decision, gearbox oil, fixings, VAT and post-repair testing.

Cost Factors

What Affects Clutch Pressure-Loss Repair Costs?

The same pedal symptom can result from a small external clip or a failed internal slave cylinder requiring major drivetrain dismantling.

Confirmed Fault Location

Pedal, cable, master, line, slave and internal clutch faults have very different labour requirements.

Hydraulic or Cable Design

Cable systems avoid hydraulic components but may use complex pedal adjusters.

External or Internal Slave

Concentric slave-cylinder replacement normally requires gearbox removal.

Gearbox Access

Driveshafts, subframes, exhausts and transfer boxes increase labour.

Pedal-Box Access

Dashboard trim and steering components may obstruct linkage repairs.

Hydraulic Contamination

Fluid inside the bellhousing can turn a slave-cylinder repair into a complete clutch replacement.

Flywheel Condition

Heat damage or excessive dual-mass movement increases the bill.

Pressure-Plate Damage

Diaphragm failure usually requires the complete clutch kit.

Recent Repair Warranty

Parts or labour warranty may apply if the failure followed recent clutch work.

Component Quality

Original-equipment, reputable aftermarket and budget parts differ in cost and warranty.

Corroded Fixings

Seized hydraulic unions, subframe bolts and gearbox fixings increase labour.

Workshop Labour Rate

Main dealer, independent and clutch-specialist rates vary across the UK.

Gearbox-removal labour should be used efficiently

When the transmission is already removed, inspect the clutch, internal slave cylinder, release hardware and flywheel before refitting.

Repair Direction

Should You Bleed, Repair or Replace the Clutch System?

Bleeding removes air but does not repair the failed component that allowed fluid or air to escape. The correct repair must address the proven cause of pressure loss.

Bleed

Remove Remaining Air

Appropriate after a repaired leak, cylinder replacement or hydraulic-system opening.

Leak Must Be Repaired

Reconnect

Repair Pedal or Cable Linkage

Suitable where a clevis, clip, quadrant or cable end has failed.

Inspect the Full Mechanism

Replace Externally

Renew Cylinder, Hose or Pipe

Corrects an accessible master, external slave or hydraulic-line failure.

Verify Pressure Afterwards

Repair Internally

Remove the Gearbox

Required for a concentric slave cylinder, release fork, bearing or pressure-plate fault.

Inspect Clutch and Flywheel

Condition	Lower-scope repair may suit	Major repair is normally required
Air in the hydraulic system	The leak or opened connection has been corrected	Air repeatedly returns because a fault remains
Pedal linkage	A clip, clevis or bush has failed	The pedal box or bulkhead is cracked
Clutch cable	An adjustment is outside specification	The cable, adjuster or quadrant has broken
Master cylinder	Replacement restores stable pressure	Contamination or multiple hydraulic faults are present
External slave cylinder	The cylinder is accessible and clutch remains clean	Internal clutch damage is also present
Concentric slave cylinder	Gearbox removal is already unavoidable	Fluid has contaminated the clutch assembly
Release fork or bearing	No external repair reaches the failed component	Gearbox removal and clutch inspection are needed
Pressure plate	No adjustment can repair structural failure	The complete clutch kit normally requires replacement

Repeated bleeding is not a substitute for diagnosis

If pressure disappears again, a leak, internal bypass, poor connection or incorrect procedure remains.

Cost-Saving Advice

How to Reduce Clutch Pressure-Loss Repair Costs

Early recovery and evidence-based diagnosis can prevent gearbox damage, clutch contamination and unnecessary replacement of serviceable parts.

Stop Driving Immediately

Continuing with incomplete clutch release can damage the gearbox.

Do Not Keep Topping Up

Locate the leak before more fluid is lost or the clutch becomes contaminated.

Record the Pumping Response

This helps identify hydraulic pressure loss without relying on pumping as a repair.

Inspect Pedal Linkage First

A failed clip or clevis can imitate an expensive hydraulic problem.

Complete Pressure Tests

Separate the master, line and slave cylinder before replacing parts.

Do Not Force Gears

Protect synchromesh and selector components from secondary damage.

Use Shared Labour Wisely

Consider clutch and internal slave-cylinder condition while the gearbox is removed.

Request Flywheel Evidence

Replace the flywheel when condition or measured movement justifies it.

Compare Itemised Quotations

Ensure garages have included the same parts, labour and conditional work.

Recovery may prevent a much larger repair

Driving with no clutch pressure can damage the gearbox or spread an internal hydraulic leak across the clutch friction surfaces.

Used-Car Buying

Checking a Used Car for Hydraulic Clutch Pressure Faults

A soft, sinking or pump-responsive clutch pedal can indicate an approaching master-cylinder, slave-cylinder or hydraulic-line failure. Inspect the vehicle cold and repeat the checks after the drivetrain reaches normal temperature.

Used-car hydraulic clutch checklist showing fluid level, pedal pressure, master-cylinder leaks, slave-cylinder leaks, hose condition, pumping response, gear selection and repair history — Figure 7: Used-car hydraulic clutch inspection covering pedal pressure, fluid condition, leakage, gear selection and repair documentation.

High Buying Risk

Walk Away If...

! The pedal goes to the floor.
! Pressure must be restored by pumping.
! Fluid is leaking near the pedal or gearbox.
! The reservoir level is low or falling.
! First or reverse gear cannot be selected normally.
! Fluid emerges from the bellhousing.
! The seller refuses an independent inspection.

Negotiate Carefully

Consider Buying Only If...

✓ The failed component has been identified.
✓ A written repair quotation is available.
✓ Clutch contamination risk has been assessed.
✓ Flywheel risk is included where relevant.
✓ The price reflects the complete repair.
✓ The vehicle can be rechecked after repair.

Lower Buying Risk

Reassuring Signs

✓ Pedal pressure is firm and consistent.
✓ The pedal holds steady under pressure.
✓ No pumping is required.
✓ Fluid level is correct with no leakage.
✓ Gear selection remains smooth when hot.
✓ Hydraulic repairs are documented.
✓ No clutch slip, judder or burning smell is present.

Recently bled hydraulics can hide an unresolved leak temporarily

Ask why the system was bled, which component was repaired and whether pressure has remained stable since the work.

Cold Vehicle Assessment

Genuine Cold-Start Hydraulic Clutch Inspection

A genuine cold inspection provides a baseline before temperature changes seal behaviour, fluid response and hydraulic pressure.

1. Confirm the Vehicle Is Cold

Check that the engine and gearbox were not warmed before your arrival.

2. Inspect Fluid Level

Record reservoir level and fluid condition before operating the pedal.

3. Inspect the Footwell

Look for fluid, damaged linkage or pedal-bracket movement.

4. Press the Pedal Slowly

Assess firmness, smoothness and whether pressure builds consistently.

5. Hold the Pedal Down

Note whether it remains stable or sinks gradually.

6. Release and Repeat Normally

Do not pump rapidly; confirm whether each ordinary stroke feels the same.

7. Select First and Reverse

Check for smooth engagement without grinding or excessive force.

8. Repeat the Checks Warm

Look for pressure loss, sinking or leakage after the road test.

A master cylinder may bypass only at certain temperatures

Cold and warm comparisons can reveal seal failure that is not obvious during a brief stationary inspection.

Pedal Inspection

Used-Car Clutch Pressure Check

Assess pedal pressure before starting, during stationary gear selection and after normal driving.

Initial Pedal Firmness

Resistance should begin consistently and feel similar on every stroke.

Pedal-Hold Test

The pedal should not sink gradually under steady pressure.

Pumping Requirement

A healthy system should not need repeated strokes to create pressure.

Rest Position

The pedal should return fully and consistently.

Footwell Leakage

Dampness near the pushrod supports master-cylinder failure.

Pedal-Side Movement

Excess play can indicate clevis, bush or bracket wear.

Fluid-Level Stability

The reservoir should remain at the correct level.

Warm Pedal Pressure

Pressure should remain consistent after repeated gear changes.

Gear-Selection Quality

First and reverse should select without drag or grinding.

Road-Test Assessment

Controlled Road Test for Clutch Hydraulic Pressure

Road testing is appropriate only where the pedal currently has stable pressure and the vehicle can be controlled safely. Do not road-test a vehicle with an active leak or a pedal that reaches the floor.

1. Choose a Low-Risk Route

Avoid heavy traffic, steep hills and situations where failure would trap the vehicle.

2. Monitor Every Pedal Stroke

Confirm that pressure remains consistent during each change.

3. Check First and Reverse

Reassess stationary selection as the system warms.

4. Include Normal Stop-Start Use

Repeated pedal operation can expose seal bypass or fluid loss.

5. Monitor the Bite Point

A changing engagement position can reflect inconsistent release travel.

6. Stop at the First Pressure Change

Park safely if the pedal softens, sinks or needs pumping.

7. Recheck the Reservoir

Look for any reduction in fluid level after the test.

8. Reinspect for Leakage

Check visible pedal, pipe, hose and gearbox areas.

End the road test immediately if pressure becomes unreliable

Do not continue because pumping restores the pedal. The next loss of pressure may occur at a junction or while changing gear.

Documentation Check

What Hydraulic Clutch Repair History Should Show

Useful documentation identifies the failed component, why it failed, the fluid used and all related parts inspected during the repair.

Master-Cylinder Invoice

Confirm part brand, replacement date and mileage.

Slave-Cylinder Type

Establish whether an external or concentric unit was fitted.

Hydraulic-Line Work

Check whether the hose, pipe, connectors and bleed point were inspected.

Fluid Specification

The correct hydraulic-fluid specification should be listed.

Bleeding Procedure

Confirm that the system was bled fully after repair.

Clutch-Kit Details

Check friction plate, pressure plate and release-component replacement.

Flywheel Decision

Confirm whether it was measured, replaced or reused.

Contamination Assessment

Internal slave-cylinder leakage should prompt a clutch inspection.

Parts and Labour Warranty

Confirm duration, mileage limits and whether the warranty transfers.

Repeated bleeding without a recorded repair is a warning sign

Air or fluid loss should not return repeatedly in a sealed, correctly repaired system.

Before the Garage Visit

Pre-Diagnostic Clutch Pressure Checklist

Record the failure safely before recovery or garage inspection. Do not continue operating or driving the vehicle merely to gather more symptoms.

Record How the Pedal Failed

State whether pressure disappeared suddenly or gradually.

Describe Pedal Resistance

Record soft, spongy, sinking, loose or completely absent pressure.

Record Pumping Response

Note whether several strokes restore pressure temporarily.

Check Fluid Level

Record whether the correct reservoir is full, low or empty.

Photograph Visible Leakage

Record safe visible evidence around the pedal, line or gearbox.

Record Footwell Dampness

Note fluid around the pedal and master-cylinder pushrod.

Record Bellhousing Leakage

Note fluid emerging between the engine and gearbox.

Identify Cable or Hydraulic Operation

Confirm which clutch operating system the vehicle uses.

Record Gear Selection

State whether gears select with the engine running and stopped.

Record Vehicle Creep

Note whether the car moves with the pedal fully depressed.

Record Any Snap or Noise

State whether a crack, snap or metallic noise accompanied the failure.

Bring Repair Invoices

Include clutch, cylinder, hose, cable and gearbox work.

Helpful Information

Give the Technician...

✓ Exact pedal-pressure behaviour.
✓ Fluid-level and leakage evidence.
✓ Pumping response.
✓ Engine-on and engine-off gear selection.
✓ Recent clutch or hydraulic work.
✓ The sound and circumstances of sudden failure.

Unsafe Actions to Avoid

Never...

! Drive with unstable clutch pressure.
! Force gears into engagement.
! Start the vehicle in gear.
! Attempt clutchless driving.
! Add unknown hydraulic fluid.
! Work beneath an unsupported vehicle.
! Treat pumping as a permanent repair.

Stop testing once clutch control is unreliable

The garage can diagnose the vehicle without the failure being repeatedly reproduced on public roads.

Continue Learning

Explore the Complete Clutch and Drivetrain Knowledge Centre

Sudden clutch-pedal pressure loss overlaps closely with a pedal that stays down, clutch slip, burning smells, a high bite point, release-system noise, high-gear rev flare and problems after clutch replacement. Use the related Motor Vehicle Expert guides below to trace the clutch pedal, hydraulic circuit, release mechanism and torque-transfer symptoms in the correct diagnostic order.

Clutch Pedal and Release Faults

Clutch Slip and Heat

Pull-Away and Acceleration

Judder and Engine Symptoms

Used-Car Buying Guides

Diagnostics and MOT

Diagnose the clutch system from pedal input to torque transfer

A clutch pedal that drops to the floor can result from hydraulic pressure loss, a failed master or slave cylinder, fluid leakage, air in the circuit, a broken cable or an internal release-system fault. Start with pedal pressure and fluid condition, then check release movement, bite-point behaviour, clutch slip, burning smells and road-speed response before replacing components.

Frequently Asked Questions

Clutch Pedal Goes to Floor FAQs

These 18 visible questions and answers match the FAQPage structured data in the page head word for word.

Why did my clutch pedal suddenly go to the floor?

A clutch pedal can suddenly go to the floor when hydraulic pressure is lost or a mechanical connection fails. Common causes include low clutch fluid, a leaking master or slave cylinder, a burst hose or pipe, air in the system, internal cylinder bypass, a broken clutch cable or detached pedal linkage.

Can low clutch fluid make the pedal go to the floor?

Yes. Low fluid can allow air to enter the clutch hydraulic system and prevent the master cylinder from transferring enough pressure to the slave cylinder. The cause of the fluid loss must be repaired because topping up the reservoir does not fix a leaking cylinder, hose or pipe.

Can a failed clutch master cylinder cause no pedal pressure?

Yes. Worn internal seals, piston damage or a fluid leak can stop the master cylinder building or holding hydraulic pressure. The pedal may sink to the floor, feel soft, improve temporarily after pumping or leave no obvious external leak when fluid bypasses internally.

Can a failed slave cylinder make the clutch pedal drop?

Yes. An external or concentric slave cylinder can leak or fail internally, reducing the movement available to disengage the clutch. A concentric slave-cylinder leak may release fluid inside the bellhousing and contaminate the clutch friction surfaces.

Why does pumping the clutch pedal restore pressure temporarily?

Pumping the pedal can temporarily compress trapped air or build pressure despite internal cylinder bypass or fluid loss. This is useful diagnostic evidence but is not a safe repair because the pedal can lose pressure again during the next gear change.

Can air in the clutch system make the pedal go to the floor?

Yes. Air compresses instead of transferring pedal movement efficiently, creating a soft or springy pedal with reduced clutch-release travel. The system should be checked for leaks and bled using the correct procedure after the source of air entry has been repaired.

Can a hydraulic hose cause the clutch pedal to lose pressure?

Yes. A clutch hose can leak, expand under pressure or fail at a connection. A damaged internal lining can also restrict fluid movement. The complete hose and pipe circuit should be inspected when the pedal becomes soft, slow or inconsistent.

Can a broken clutch cable make the pedal fall to the floor?

Yes. On a cable-operated clutch, a snapped inner cable, detached cable end, failed automatic adjuster or broken pedal quadrant can remove resistance and allow the pedal to drop. The cable, pedal hardware and gearbox release arm should all be inspected.

Why is there clutch fluid near the pedal?

Fluid around the clutch pedal or footwell commonly indicates leakage from the master-cylinder pushrod seal, reservoir feed connection or nearby hydraulic pipework. The fluid can damage carpet and paint, and the leak can cause sudden loss of clutch operation.

Why is clutch fluid leaking from the bellhousing?

Hydraulic fluid emerging from the bellhousing often indicates a leaking concentric slave cylinder located around the gearbox input shaft. Gearbox removal is normally required, and the clutch and flywheel should be checked for contamination or heat damage.

Can I drive if the clutch pedal goes to the floor?

Driving is not recommended because the clutch may not disengage or engage predictably. The vehicle can remain in gear, stall, creep, lose drive or become difficult to control at junctions. Recovery is usually the safer option when normal pedal pressure has been lost.

Can I top up the clutch fluid and keep driving?

Topping up may restore operation briefly if the level is low, but it does not repair the leak and air may remain in the system. The pedal can fail again without warning, so the source of fluid loss should be diagnosed before the vehicle is driven normally.

Does a clutch pedal on the floor mean the clutch itself is worn?

Not necessarily. Sudden loss of pedal pressure is more commonly associated with the hydraulic system, clutch cable or pedal linkage than ordinary friction-plate wear. The clutch may still require replacement if an internal slave cylinder leaks or the release system damages or contaminates it.

How does a garage diagnose a clutch pedal with no pressure?

A garage normally checks the fluid level, pedal linkage, master-cylinder output, hydraulic pipes and hoses, slave-cylinder travel, visible leaks, cable operation and release-arm movement. Pressure testing and correct bleeding help determine whether gearbox removal is required.

Can a clutch pedal that goes to the floor fail an MOT?

Loss of clutch-pedal pressure is not listed as a standalone clutch-condition item in the ordinary car MOT, but the tester must be able to operate and position the vehicle safely. Related fluid leaks, warning lights or an inability to complete the test may also affect the outcome.

Will bleeding the clutch fix a pedal that goes to the floor?

Bleeding can restore pressure when trapped air is the remaining problem after a repair or system opening. It will not permanently fix a leaking cylinder, damaged hose, failed seal or broken cable, and repeated air entry means an underlying fault remains.

What is the difference between master-cylinder and slave-cylinder failure?

The master cylinder creates hydraulic pressure at the pedal, while the slave cylinder converts that pressure into clutch-release movement at the gearbox. Master-cylinder faults may leak near the pedal or bypass internally, while slave-cylinder faults commonly leak near or inside the bellhousing.

How much does a clutch pedal pressure-loss repair cost in the UK?

Basic diagnosis commonly costs around £60 to £180. Bleeding, hose, pipe, master-cylinder or external slave-cylinder repairs may cost roughly £60 to £500, while a concentric slave-cylinder and clutch repair can cost about £700 to £1,700 or more if the flywheel also requires replacement.

Complete System Overview

How Clutch Pedal Pressure Reaches the Clutch

Hydraulic pressure must pass through every stage of the circuit without fluid loss, excessive expansion or internal seal bypass. Mechanical systems must maintain an uninterrupted connection from the pedal to the gearbox release arm.

1. Driver Presses the Pedal

The pedal begins the clutch-release command.

2. Pedal Moves the Pushrod

The pushrod acts on the master-cylinder piston.

3. Master Cylinder Creates Pressure

Internal seals force fluid into the clutch hydraulic line.

4. Pipe Carries the Pressure

Rigid pipework transfers pressure towards the gearbox.

5. Hose Accommodates Movement

A flexible hose moves with the engine and transmission.

6. Slave Cylinder Extends

Hydraulic pressure becomes mechanical release movement.

7. Release Mechanism Operates

The fork or concentric unit moves the release bearing.

8. Pressure Plate Releases

The clutch friction plate separates from engine torque.

Pedal Connection Failure

A clevis, pushrod, quadrant or cable end breaks or detaches.

Master-Cylinder Failure

Pressure cannot be created or held at the beginning of the hydraulic circuit.

Hydraulic-Line Failure

A pipe, hose or union leaks, expands or restricts fluid transfer.

Slave-Cylinder Failure

Hydraulic pressure cannot produce sufficient release movement.

Internal Release Failure

A fork, bearing, guide or pressure plate prevents clutch disengagement.

Friction Contamination

An internal hydraulic leak damages clutch engagement after the pressure fault is repaired.

Where movement is lost	Typical pedal result	Likely inspection area
Pedal-to-pushrod connection	Pedal falls with no cylinder movement	Clevis, pin, clip and pedal bracket
Master cylinder	Pedal sinks or cannot build pressure	Master seals, piston and pushrod
Hydraulic pipe or hose	Pressure is lost or pedal feels soft	Pipework, unions, hose and bleed point
Slave cylinder	Pedal pressure does not create release travel	External or concentric slave cylinder
Cable connection	Pedal drops suddenly without hydraulic leakage	Cable, adjuster, quadrant and release arm
Internal release system	External movement occurs but clutch remains engaged	Fork, bearing, guide and pressure plate

Find the exact stage where force disappears

Pedal movement alone is not enough. Compare pedal input, master-cylinder pressure, slave-cylinder travel and internal clutch-release response.

Guide Summary

Clutch Pedal Goes to Floor: Key Takeaways

Correct Diagnostic Approach

What You Should Do

✓ Stop safely when normal pedal pressure is lost.
✓ Identify whether the vehicle uses hydraulics or a cable.
✓ Inspect pedal linkage before replacing cylinders.
✓ Check fluid level and the complete leak path.
✓ Test master-cylinder pressure and slave-cylinder travel.
✓ Treat pumping response as evidence, not a repair.
✓ Inspect clutch contamination after an internal leak.
✓ Verify stable operation hot and cold after repair.

Serious Warning Signs

What You Should Never Ignore

! The pedal dropping with no resistance.
! A low or empty hydraulic reservoir.
! Fluid leaking into the footwell.
! Fluid emerging from the bellhousing.
! Pressure returning only after pumping.
! Gears selecting only with the engine off.
! The vehicle creeping with the pedal pressed.
! A snap, crack or broken cable connection.

Final Thoughts

Diagnosing Sudden Clutch-Pedal Pressure Loss Correctly

A clutch pedal that falls to the floor is normally a pressure or connection failure rather than ordinary friction-plate wear. Begin with the pedal linkage and identify whether the clutch uses a hydraulic system or mechanical cable.

On hydraulic systems, inspect fluid level, master-cylinder output, pipe and hose integrity, slave-cylinder travel and bellhousing leakage. A pedal that becomes firmer after pumping still has an unresolved pressure fault.

Gearbox removal should follow external test evidence unless an internal slave-cylinder leak or mechanical failure is already clear. When internal repair is required, inspect the complete clutch, release system and flywheel during the same labour operation.

Do not continue driving with unstable clutch pressure. Recovery is safer than risking loss of gear control, gearbox damage or a complete hydraulic failure in traffic.
