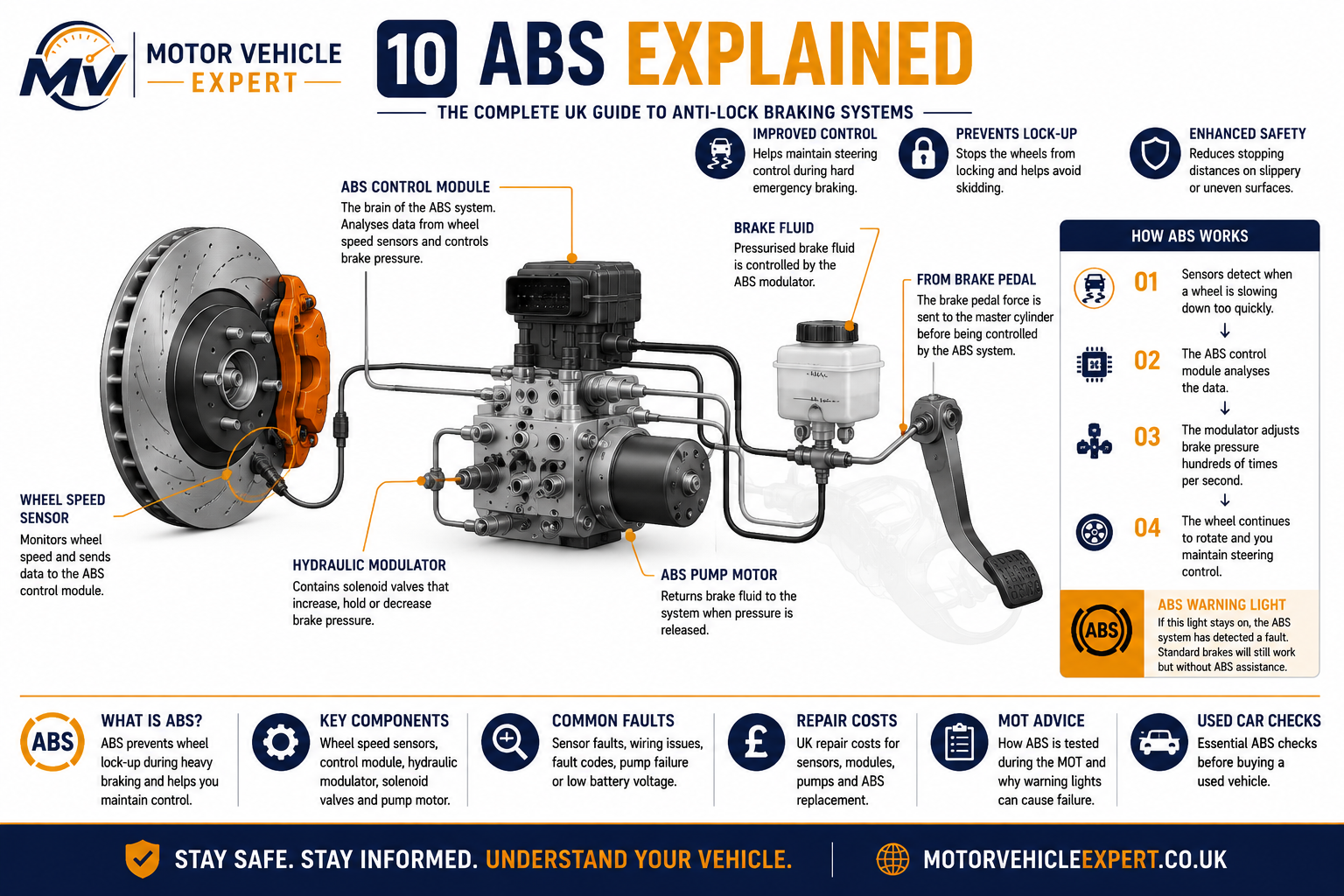

ABS Explained

What is ABS?

ABS is an electronic braking safety system that helps stop the wheels from locking during heavy braking. When the system detects that one or more wheels are about to stop rotating, it rapidly reduces and reapplies brake pressure to that wheel so the tyre can keep gripping the road. This helps the driver maintain steering control instead of sliding in a straight line.

ABS works alongside the normal hydraulic braking system. The brake master cylinder creates hydraulic pressure, the brake fluid transfers that pressure, and the ABS hydraulic modulator adjusts pressure when wheel lock-up is detected. The system relies on wheel speed sensors, wiring, a control module, solenoid valves and an ABS pump motor.

What Is ABS (Anti-lock Braking System)?

The Anti-lock Braking System (ABS) is an electronic safety system designed to prevent the wheels from locking during heavy or emergency braking. Instead of allowing one or more tyres to stop rotating completely and slide across the road surface, ABS continuously monitors wheel speed and automatically adjusts hydraulic brake pressure to each wheel whenever lock-up is detected.

Modern ABS systems work alongside every major braking component. When you press the brake pedal, the brake servo multiplies your pedal effort before the brake master cylinder converts that force into hydraulic pressure. The pressure travels through the brake pipes, brake hoses and into the brake calipers. The ABS hydraulic modulator sits within this hydraulic circuit and can instantly increase, reduce or hold brake pressure at each individual wheel whenever wheel lock-up is detected.

Unlike older braking systems that relied entirely on the driver's judgement, ABS can react many times every second. Wheel speed sensors constantly monitor the rotational speed of every wheel and send this information to the ABS Electronic Control Unit (ECU). If one wheel suddenly slows much faster than the others, indicating that it is about to lock, the ECU commands the hydraulic modulator to release pressure momentarily before reapplying it. This rapid pressure cycling is what drivers feel as the familiar brake pedal pulsation during emergency braking.

The primary purpose of ABS is not necessarily to shorten stopping distances. Its main safety benefit is allowing the driver to continue steering while braking heavily. Without ABS, locked wheels lose much of their steering ability because the tyres slide instead of rolling. By preventing wheel lock-up, ABS helps maintain directional stability, making it easier to avoid obstacles while still applying maximum braking effort.

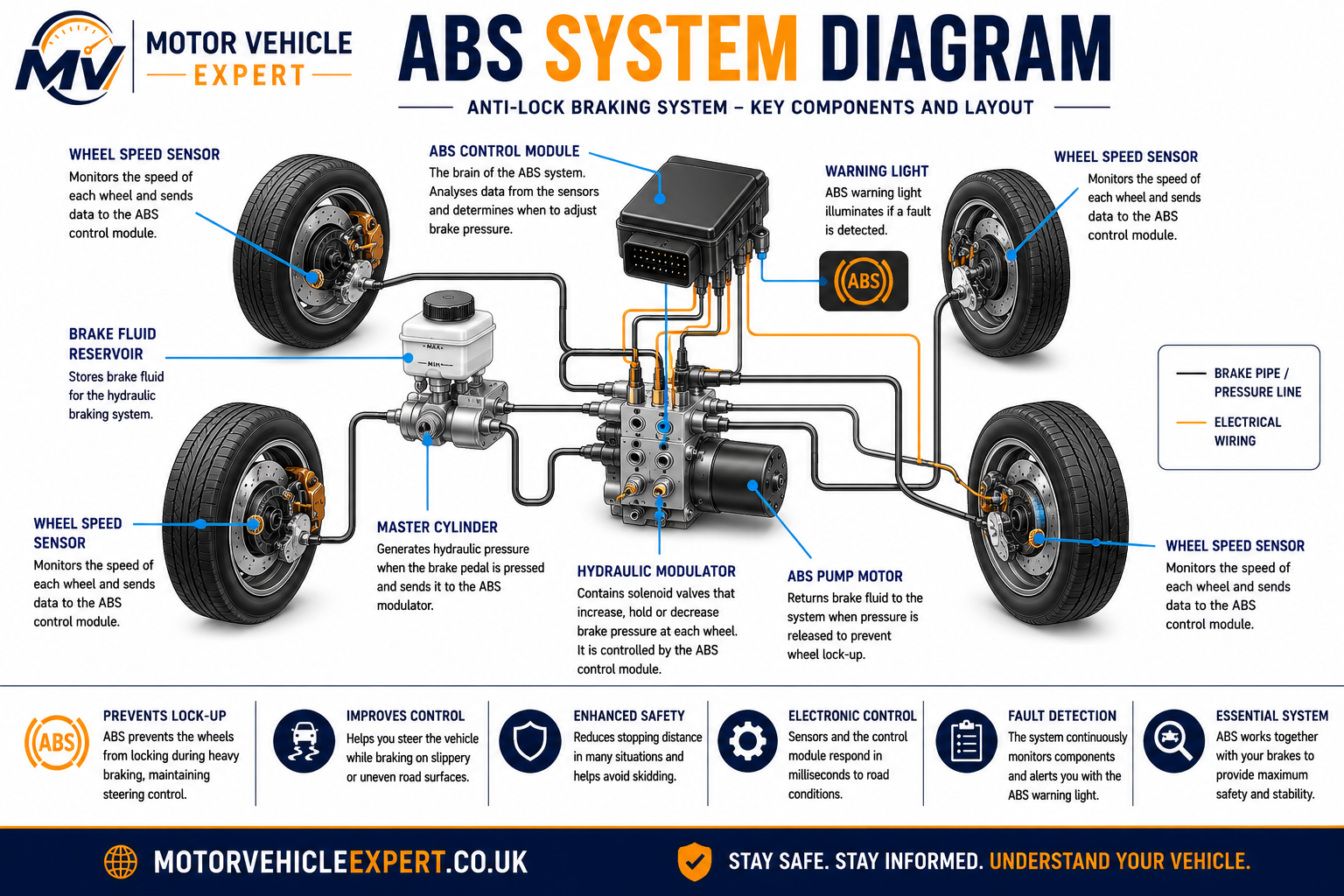

ABS System Diagram

Modern Anti-lock Braking Systems combine mechanical braking components with sophisticated electronics. The diagram below illustrates the main parts that work together whenever the driver applies the brakes.

Every component shown performs a specific task. The wheel speed sensors collect rotational speed information, the tone rings provide accurate speed references, the ABS ECU processes the incoming data and the hydraulic modulator adjusts brake pressure whenever wheel lock-up is detected. Together these components allow the braking system to respond far faster than any driver could manually.

How ABS Works

Every time the brakes are applied, the ABS control unit compares the speed of all four wheels. During normal braking, the hydraulic system operates conventionally and ABS remains inactive. If one wheel begins to decelerate significantly faster than the others, suggesting it is about to lock, the ABS ECU immediately intervenes.

Solenoid valves inside the hydraulic modulator rapidly reduce brake pressure to the affected wheel. As the wheel begins rotating normally again, pressure is restored. This cycle can repeat many times every second until maximum braking is achieved without prolonged wheel lock-up. Drivers typically notice this as a rapid vibration or pulsing through the brake pedal, which is completely normal during ABS operation.

Because each wheel is monitored independently, ABS can adapt to changing road conditions beneath individual tyres. For example, if the left wheels are travelling over ice while the right wheels remain on dry tarmac, the system can adjust braking pressure separately for each side of the vehicle. This independent wheel control is one of the reasons modern ABS systems significantly improve vehicle stability during emergency braking.

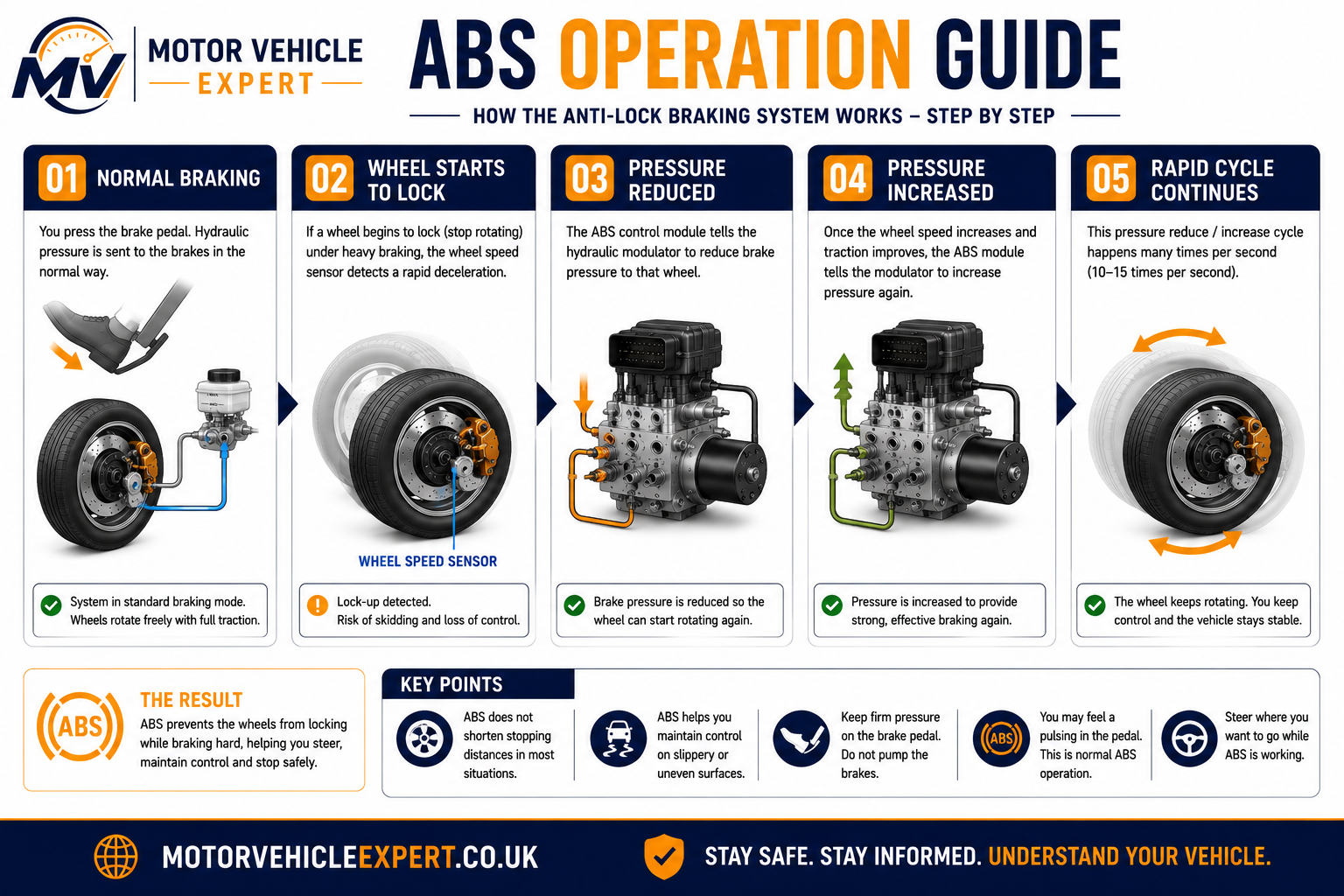

ABS Operation Guide

Although ABS operates automatically, understanding what happens during emergency braking helps drivers react correctly when the system activates. The following guide shows the complete ABS operating sequence from the moment the brake pedal is pressed until the vehicle comes safely to a stop.

Modern ABS systems can complete this pressure adjustment cycle many times every second. Instead of allowing the wheels to remain locked, brake pressure is continually adjusted to maintain tyre grip and maximise vehicle stability under changing road conditions.

Common ABS Problems

ABS systems are highly reliable, but because they combine electronic sensors, hydraulic components and sophisticated control software, faults can occur as vehicles age. Many ABS warning lights are caused by relatively inexpensive components such as wheel speed sensors or damaged wiring, while others involve more complex hydraulic modulator or control module failures. Correct diagnosis is therefore essential before replacing expensive parts.

Modern vehicles also integrate ABS with Traction Control (TCS), Electronic Stability Control (ESC), Hill Start Assist and Electronic Brakeforce Distribution (EBD). As a result, a single ABS fault can sometimes trigger several dashboard warning lights simultaneously.

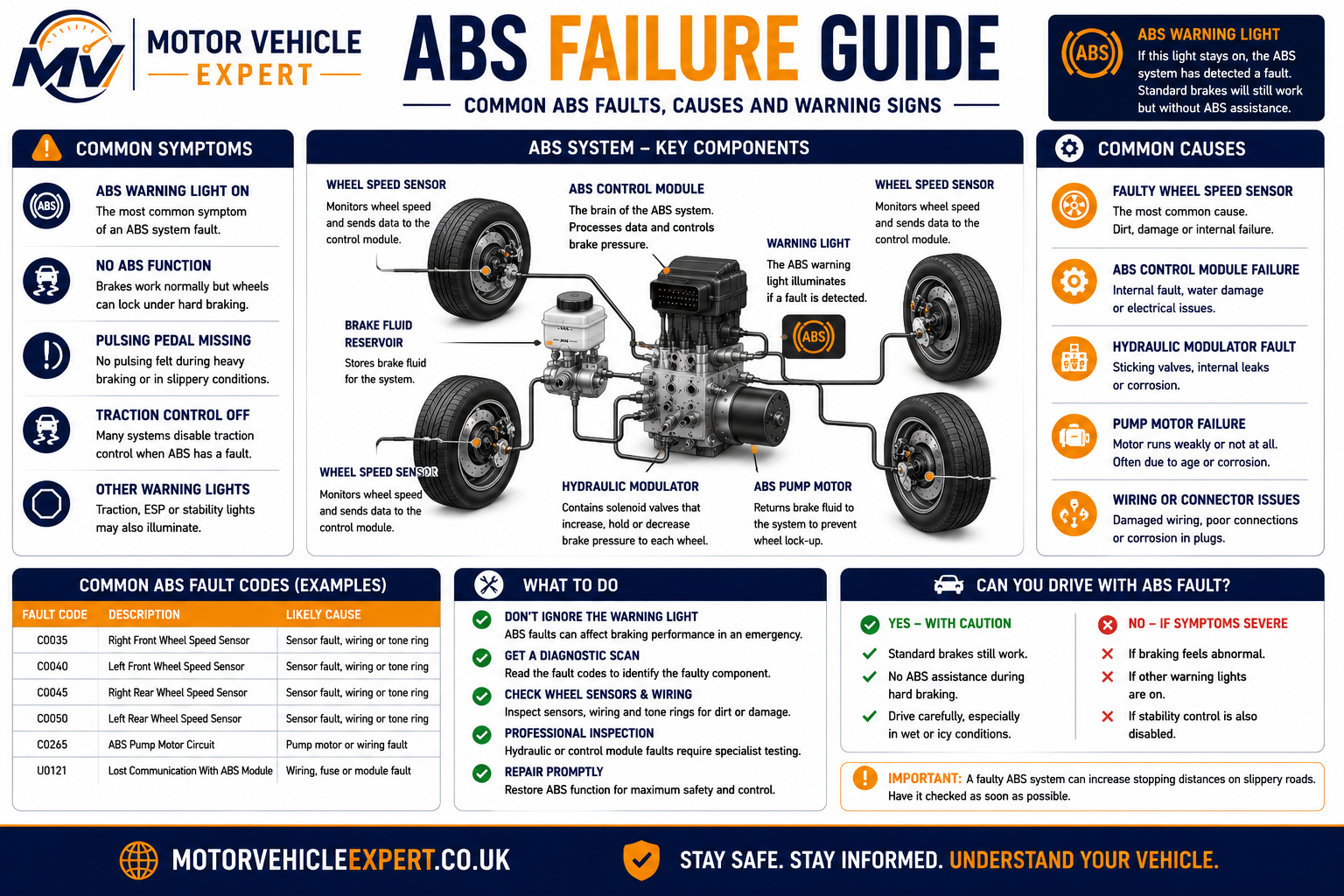

ABS Failure Guide

ABS failures can range from a simple wheel speed sensor fault to complex hydraulic or electronic control module problems. Unlike conventional hydraulic brake failures, most ABS faults do not remove normal braking altogether. Instead, they disable the anti-lock function, meaning the vehicle may still stop normally under everyday driving but could lose steering control during heavy emergency braking when wheel lock-up occurs.

Modern ABS systems also communicate with Electronic Stability Control (ESC), Traction Control (TCS), Hill Start Assist and Emergency Brake Assist. Because these systems share sensors and electronic control units, one ABS fault may illuminate several dashboard warning lights at the same time. Professional diagnosis should therefore always identify the root cause rather than replacing components based solely on warning lights.

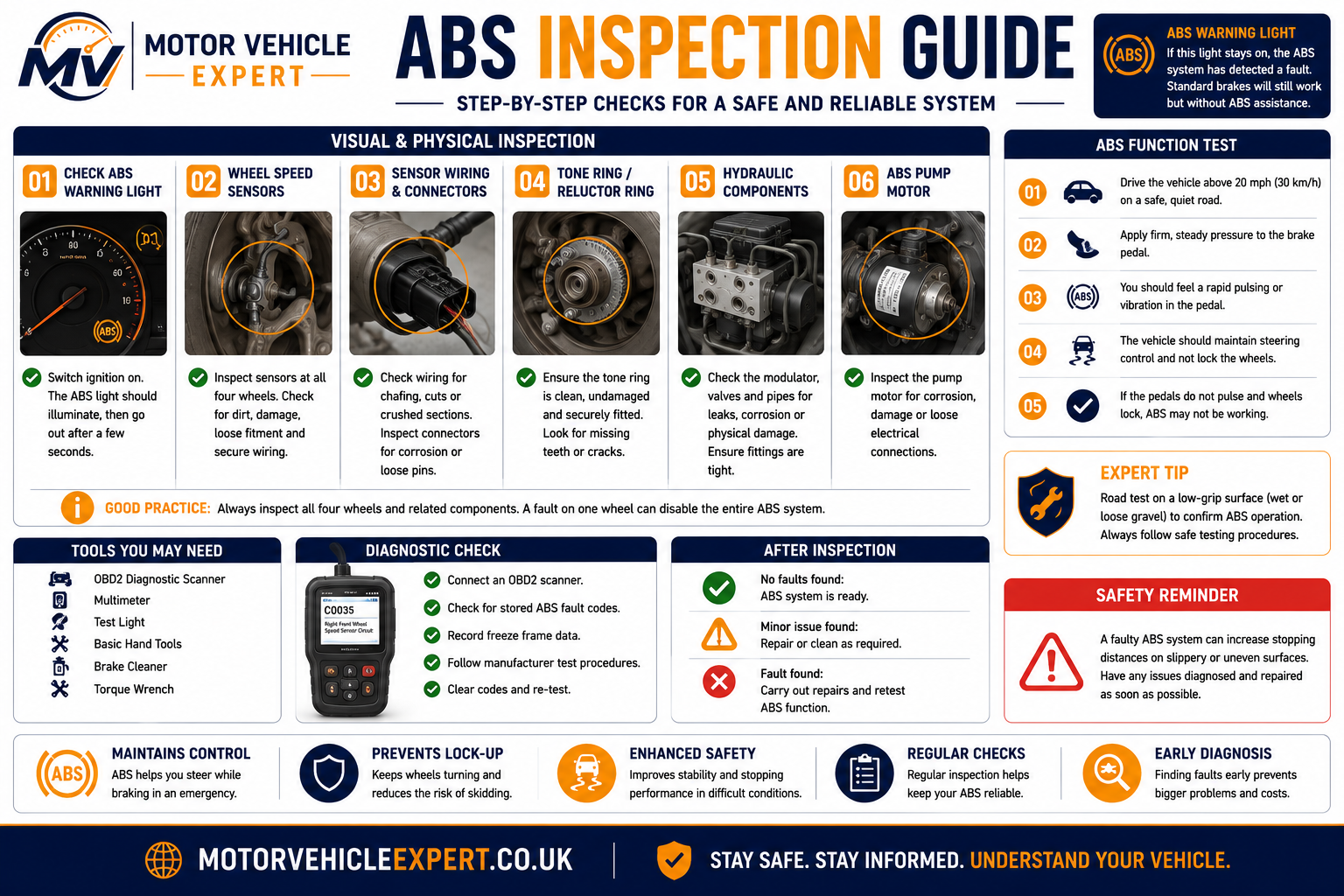

ABS Inspection Guide

Diagnosing ABS faults requires far more than reading dashboard warning lights. Modern diagnostic procedures combine electronic fault-code analysis with physical inspection of the braking system, wheel speed sensors, reluctor rings, hydraulic components and electrical wiring. This systematic approach prevents unnecessary replacement of expensive ABS pumps or control modules.

Most professional workshops begin with a diagnostic scan capable of communicating directly with the ABS Electronic Control Unit. Stored Diagnostic Trouble Codes (DTCs) identify the affected circuit, allowing technicians to confirm whether the fault originates from a wheel speed sensor, hydraulic modulator, pump motor, electrical wiring or the ABS ECU itself.

Can ABS Components Be Repaired Or Must They Be Replaced?

One of the biggest misconceptions surrounding Anti-lock Braking Systems is that an illuminated ABS warning light automatically means the complete ABS unit requires replacement. In reality, most ABS faults originate from relatively small components such as wheel speed sensors, damaged wiring, corroded reluctor rings or poor electrical connections. Accurate diagnosis is therefore the most important part of any ABS repair because replacing expensive hydraulic units or control modules without confirming the fault can waste hundreds of pounds.

A modern ABS system combines electronic, hydraulic and mechanical components into one integrated safety system. Each part performs a different function and each has its own failure characteristics. Some components are inexpensive and straightforward to replace, while others require specialist programming after installation. Understanding which parts can normally be repaired and which usually require complete replacement helps vehicle owners make informed repair decisions.

Professional workshops begin by connecting manufacturer-compatible diagnostic equipment capable of communicating with the ABS Electronic Control Unit. Unlike a basic engine code reader, a professional scanner can access live wheel speed data, hydraulic pump tests, valve activation tests and manufacturer-specific Diagnostic Trouble Codes (DTCs). These tests identify whether the fault is electrical, hydraulic or mechanical before any parts are removed.

Wheel speed sensors remain the most common ABS repair carried out in UK workshops. Positioned close to each wheel bearing or hub assembly, these sensors operate in harsh conditions where road salt, moisture, brake dust and stone impacts gradually take their toll. A contaminated sensor may simply require cleaning, whereas damaged wiring or failed internal electronics usually require replacement. Fortunately, wheel speed sensors are generally among the least expensive ABS components to repair.

Tone rings, also known as reluctor rings, should always be inspected whenever a wheel speed sensor fault is diagnosed. Rust expansion, cracked rings or missing teeth alter the magnetic signal reaching the sensor, causing incorrect wheel speed readings even though the sensor itself remains fully functional. On some vehicles the reluctor ring can be replaced independently, while others require replacement of the complete driveshaft, wheel bearing or hub assembly because the ring forms part of those components.

Wiring faults are another common cause of ABS warning lights. Harnesses positioned close to suspension arms, steering components and wheel arches experience constant movement, vibration and exposure to water. Broken wires inside the insulation, corroded connectors or damaged plugs can interrupt communication between the wheel speed sensor and the ABS ECU. Skilled technicians often repair these faults by replacing damaged wiring sections or connectors rather than replacing the sensor unnecessarily.

Hydraulic modulators are considerably more expensive than sensors because they contain precision solenoid valves responsible for controlling brake pressure during ABS intervention. Internal contamination, sticking valves or hydraulic damage generally require replacement or specialist remanufacturing. Because these units directly influence brake pressure, replacement should always be followed by correct bleeding procedures and manufacturer-approved calibration where required.

The ABS pump motor is responsible for restoring hydraulic pressure after the modulator has released pressure during ABS operation. Pump failures are much less common than sensor faults but can occur through electrical wear, corrosion or internal mechanical failure. Some vehicles allow separate pump replacement, while others integrate the pump with the hydraulic modulator, requiring the complete assembly to be replaced.

ABS Electronic Control Units (ECUs) are highly reliable, but age, vibration, moisture ingress and solder joint failure can eventually cause internal faults. Many specialist companies now offer professional ECU testing and remanufacturing services, providing a cost-effective alternative to purchasing a brand-new unit. However, replacement control modules frequently require coding or programming using manufacturer diagnostic software before they can communicate correctly with the vehicle's braking, traction control and stability systems.

Used ABS modules are widely available, but they should be approached cautiously. Even if the part number matches, software versions, vehicle specifications and coding requirements may differ. Reconditioned units supplied by reputable specialists often provide a better balance between cost, reliability and warranty support than untested second-hand components removed from salvage vehicles.

After any ABS repair, technicians should carry out a complete verification procedure. This includes clearing stored fault codes, checking live wheel speed readings from all four sensors, confirming hydraulic operation, performing controlled road testing and ensuring that the ABS, traction control and stability control warning lights remain extinguished. Simply replacing a component without confirming correct system operation leaves uncertainty over whether the underlying fault has truly been resolved.

ABS And The UK MOT Test

Anti-lock Braking Systems form part of the vehicle's overall braking safety system and are assessed during the MOT where ABS is fitted as original equipment. While an MOT tester does not dismantle the ABS hydraulic unit or perform advanced electronic diagnostics, the inspection follows the DVSA MOT Inspection Manual by checking that the system appears to operate correctly, that required warning lamps behave as expected and that no obvious defects are present which could affect braking safety.

The inspection begins before the vehicle even moves onto the brake rollers. During the dashboard lamp check the tester confirms that the ABS warning lamp illuminates during the ignition self-test before extinguishing correctly. If the warning lamp remains illuminated, indicates an ABS malfunction or clearly shows the anti-lock braking system is inoperative, the vehicle will normally fail the MOT because an important safety system is no longer functioning correctly.

During the remainder of the inspection, testers assess the braking system as a whole rather than concentrating solely on the electronic components. Brake performance, pedal feel, hydraulic integrity, brake pipe condition, brake hose condition and braking efficiency are all considered together. Although ABS itself is electronic, its operation depends entirely upon a healthy hydraulic braking system, making routine servicing of brake fluid, brake pipes, hoses, calipers and the master cylinder just as important as maintaining the electronic control system.

Modern vehicles frequently combine ABS with Electronic Stability Control (ESC), Traction Control (TCS), Emergency Brake Assist (EBA) and Electronic Brakeforce Distribution (EBD). Depending on vehicle design, faults affecting shared wheel speed sensors or the ABS control module may illuminate several dashboard warning lamps simultaneously. A professional diagnostic inspection should always determine the root cause before individual components are replaced.

Typical ABS Repair Costs UK

ABS repair costs vary considerably depending on which component has failed. Most repairs involve relatively inexpensive wheel speed sensors or wiring faults, while hydraulic modulators, ABS pumps and electronic control modules are among the most expensive braking components fitted to modern vehicles. These guide prices represent broad UK estimates and should be used for budgeting rather than fixed quotations.

Used Car Buying Checks

ABS repairs can range from relatively inexpensive sensor replacements to major hydraulic and electronic repairs costing well over £1,000. For this reason, the anti-lock braking system deserves careful attention whenever purchasing a used vehicle. A few simple checks can reveal problems before money changes hands.
